Lower Left of the Instrument Panel Components

Lower Left of the Instrument Panel Components

Items
1. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
2. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor

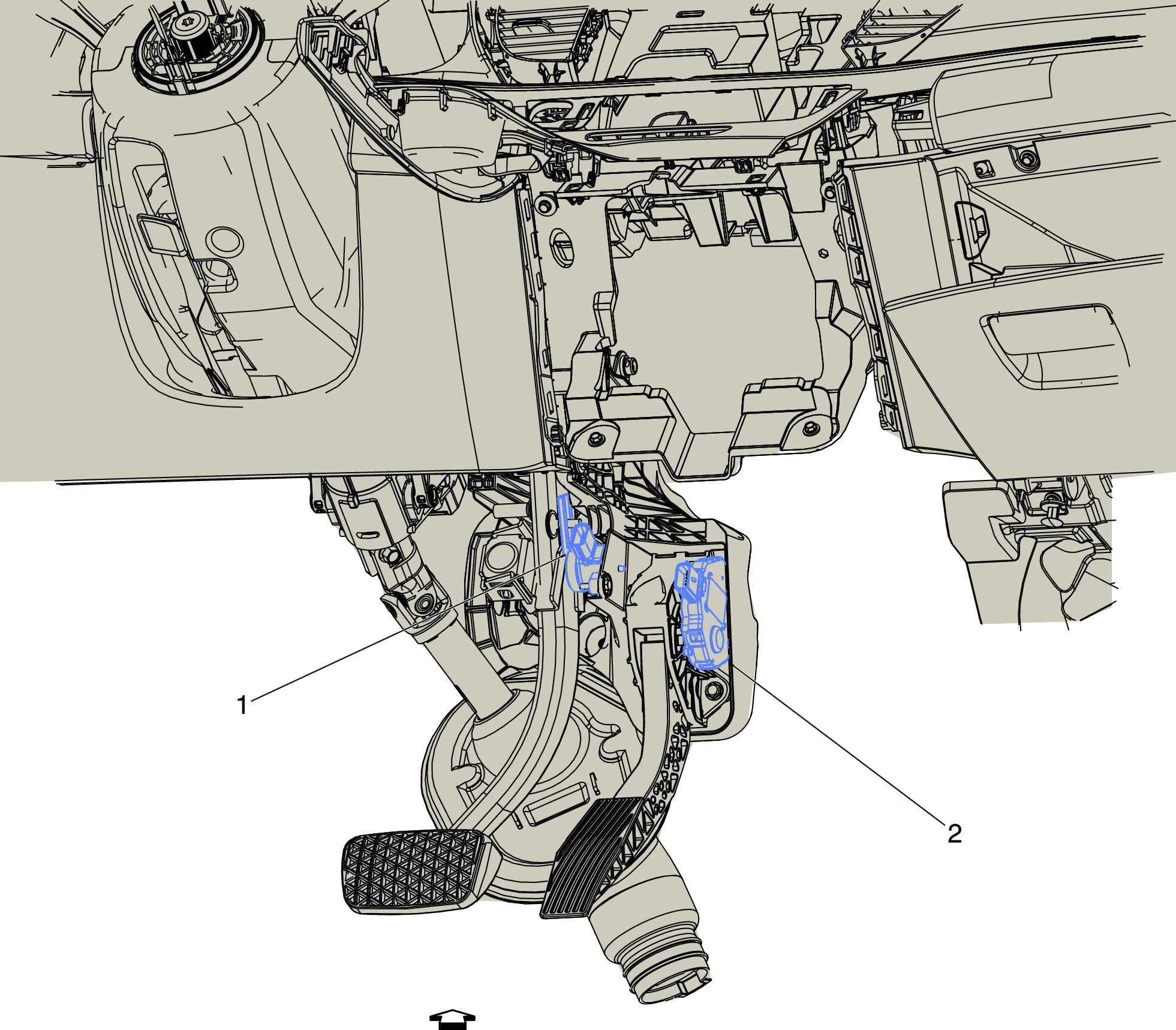

Fig 1: Lower Left of the Instrument Panel Components
GM4319219Courtesy of GENERAL MOTORS COMPANY
