Rear of the Instrument Panel Components

Items
1. T15 Navigation Antenna Signal Splitter (IO6 + UE1)
2. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag
3. K33 HVAC Control Module K33 HVAC Control Module X1 (CZ2)K33 HVAC Control Module X1 (EF7/Z49)K33 HVAC Control Module X2 (CZ2)K33 HVAC Control Module X2 (EF7/Z49)
4. P19B Speaker - Center Instrument Panel (UQS) P19B Speaker - Center Instrument Panel
5. C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery (UE1)
6. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 (UE1)
7. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel Wire Entry
8. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 (CZ2)K36 Inflatable Restraint Sensing and Diagnostic Module X1 (EF7/Z49)K36 Inflatable Restraint Sensing and Diagnostic Module X2
9. K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
10. A11 Radio A11 Radio X1 (IO5/IO6)A11 Radio X1 (UKS)A11 Radio X2 (IO5/IO6)A11 Radio X2 (NGI)A11 Radio X2 (UKS)A11 Radio X3
11. K74 Human Machine Interface Control Module (IO5/IO6) K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2

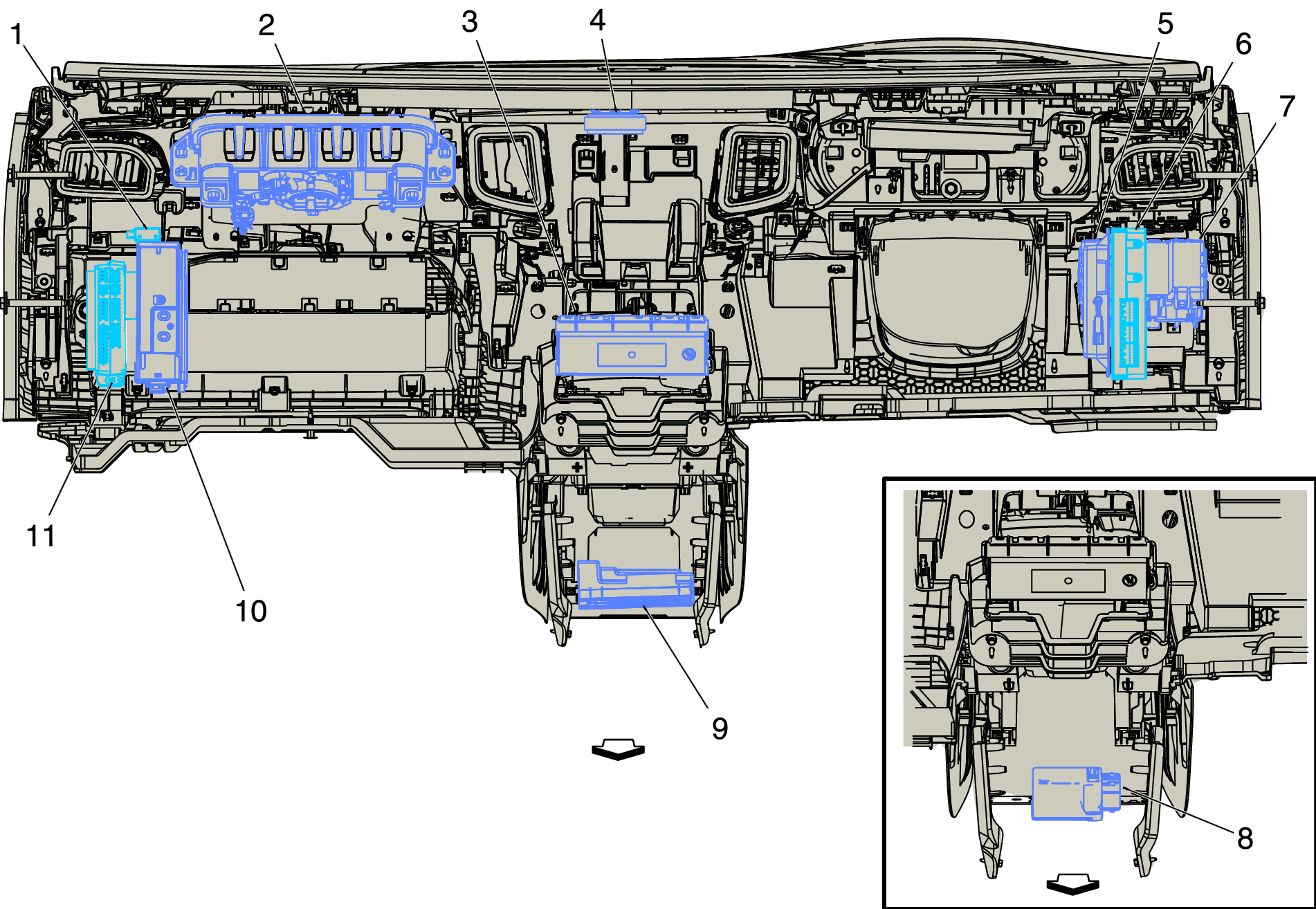

Fig 1: Rear of the Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
