Rearview Driver Information Camera Replacement

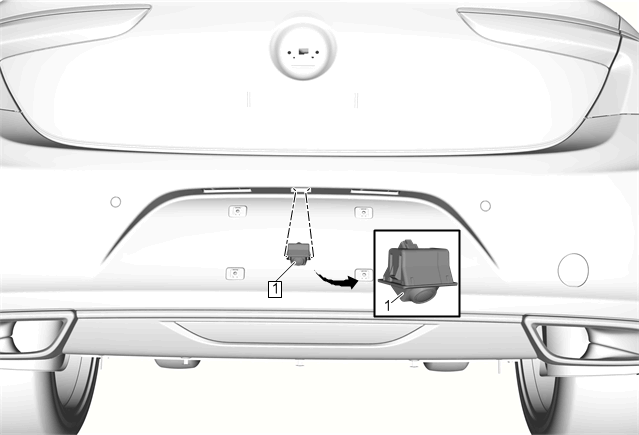

Fig 1: Rearview Driver Information Camera
GM4353762Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
preliminary procedure
Rear Bumper Fascia Replacement
1 Rearview Driver Information Camera

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Push retainer clip inward and rotate the camera downward.
  3. Disconnect the electrical connector.
