Removal Procedure
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
- Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

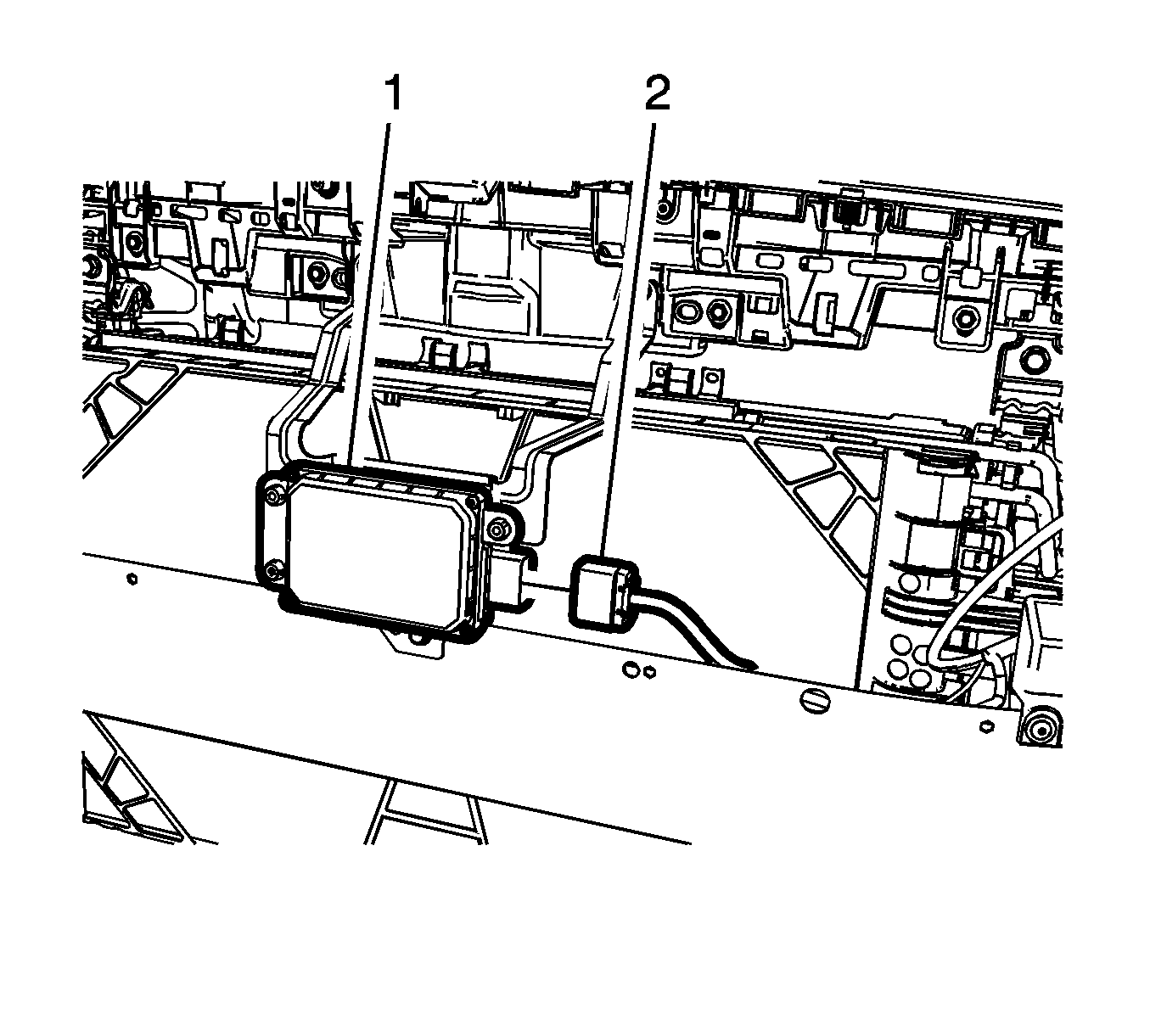

- Disconnect the forward range radar module wiring harness plug (2) from the forward range radar module (1).
- Carefully lift the forward range radar module away from the bracket by using a plastic tool at the positions (1, 2) and (3) successively as shown in the graphic.

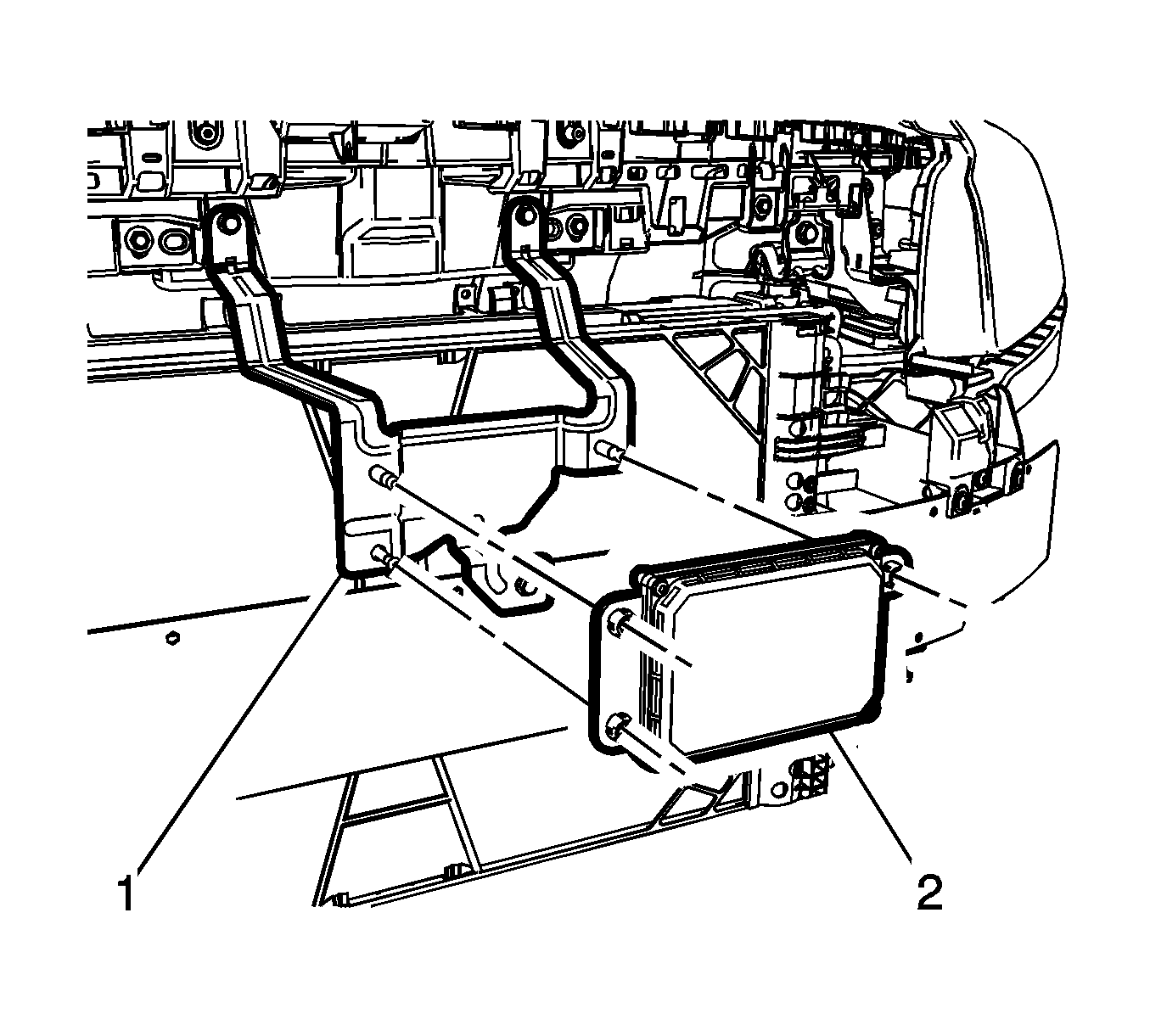

- Carefully remove the forward range radar module (2) from the forward range radar module bracket (1).
CAUTION:
Always use care when handling the forward range radar module and bracket. Improper handling can cause damage to the module or bracket and affect the functionality of the system.
NOTE:
Remove the forward range radar module beginning with the lower ball socket (4).
NOTE:
ONLY lift at the shown positions.
