Radio Replacement

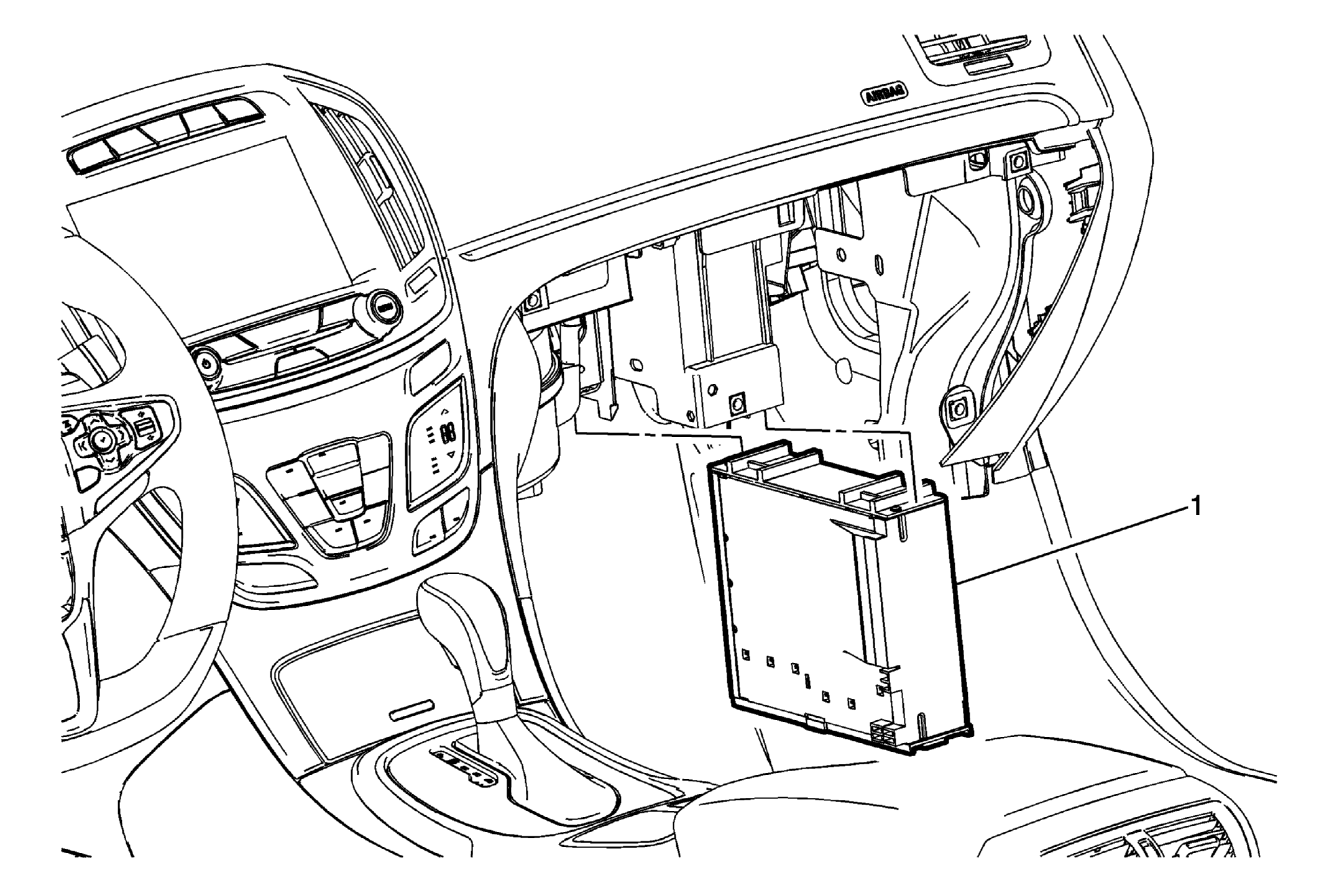

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Radio Procedure Disconnect the electrical connections. Slide module downward to release from bracket. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Radio

Procedure
