Engine Components - Front (LTD)

Items
1: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LTD)
2: B75B Mass Air Flow/Intake Air Temperature Sensor (LLU, LTD, or LDK)
3: Q38 Throttle Body Q38 Throttle Body (LTD/LDK)
4: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LDK)Q12 Evaporative Emission Purge Solenoid Valve (LEA)Q12 Evaporative Emission Purge Solenoid Valve (LLU)Q12 Evaporative Emission Purge Solenoid Valve (LTG)
5: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LDK/LEA/LTD)
6: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LDK)B26 Crankshaft Position Sensor (LEA)B26 Crankshaft Position Sensor (LLU)B26 Crankshaft Position Sensor (LTG)
7: M64 Starter Motor M64 Starter Motor X1 (LDK)M64 Starter Motor X1 (LEA)M64 Starter Motor X1 (LLU)M64 Starter Motor X1 (LTG)M64 Starter Motor X2 (LDK)
8: B68A Knock Sensor 1 (LDK or LTG) B68A Knock Sensor 1 (LDK)B68A Knock Sensor 1 (LTG)
9: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (LDK)Q2 A/C Compressor Clutch (LEA)Q2 A/C Compressor Clutch (LLU)Q2 A/C Compressor Clutch (LTG)
10: G13 Generator G13 Generator X1 (LDK)G13 Generator X1 (LEA)G13 Generator X1 (LLU)G13 Generator X1 (LTG)G13 Generator X2

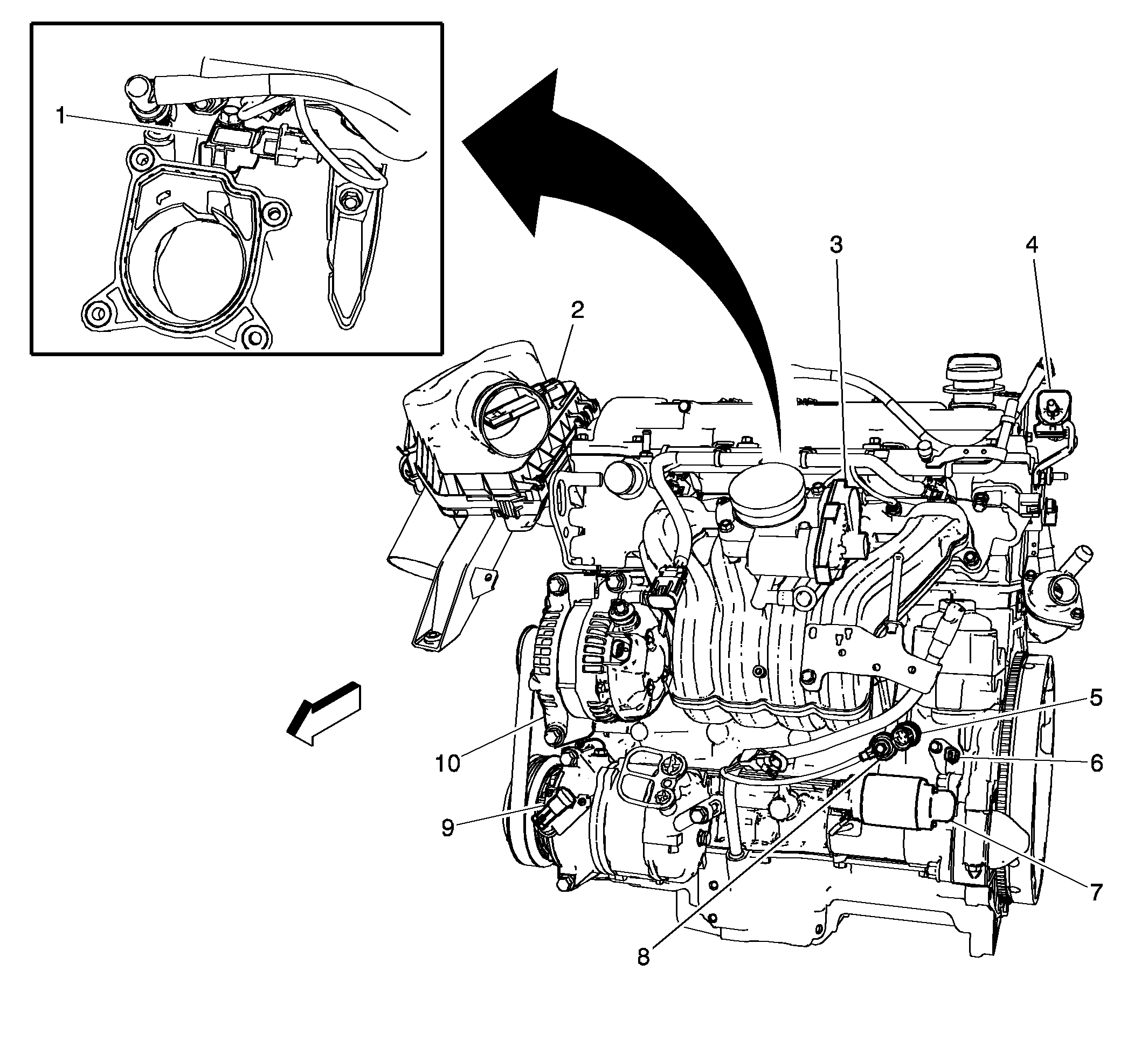

Fig 1: Engine Components - Front (LTD)

Courtesy of GENERAL MOTORS COMPANY
