Front Intake Air Duct Deflector Replacement

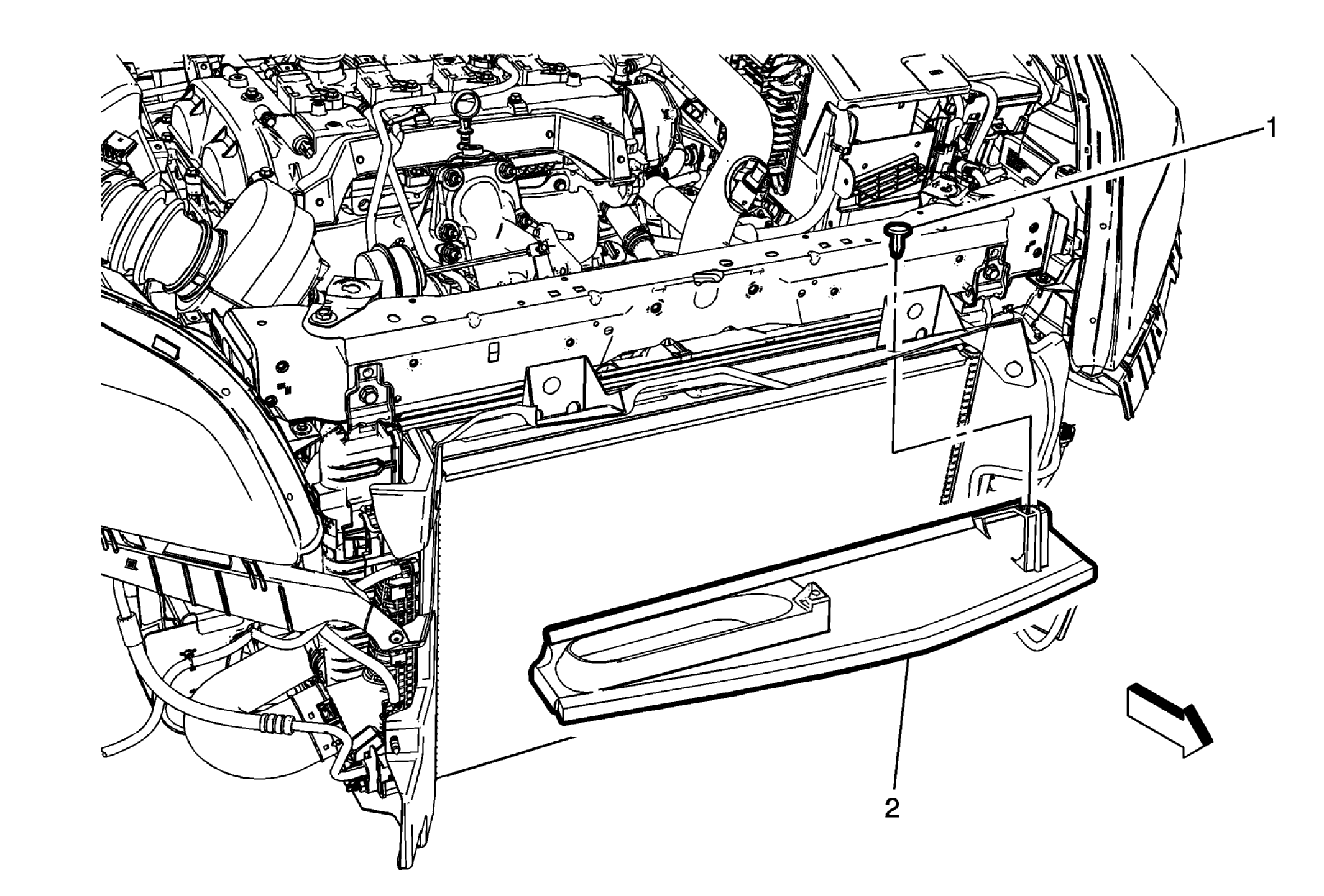

Fig 1: Front Intake Air Duct Deflector
GM2868548Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
1 Front Intake Air Duct Deflector Retainer
2 Front Intake Air Duct Deflector
