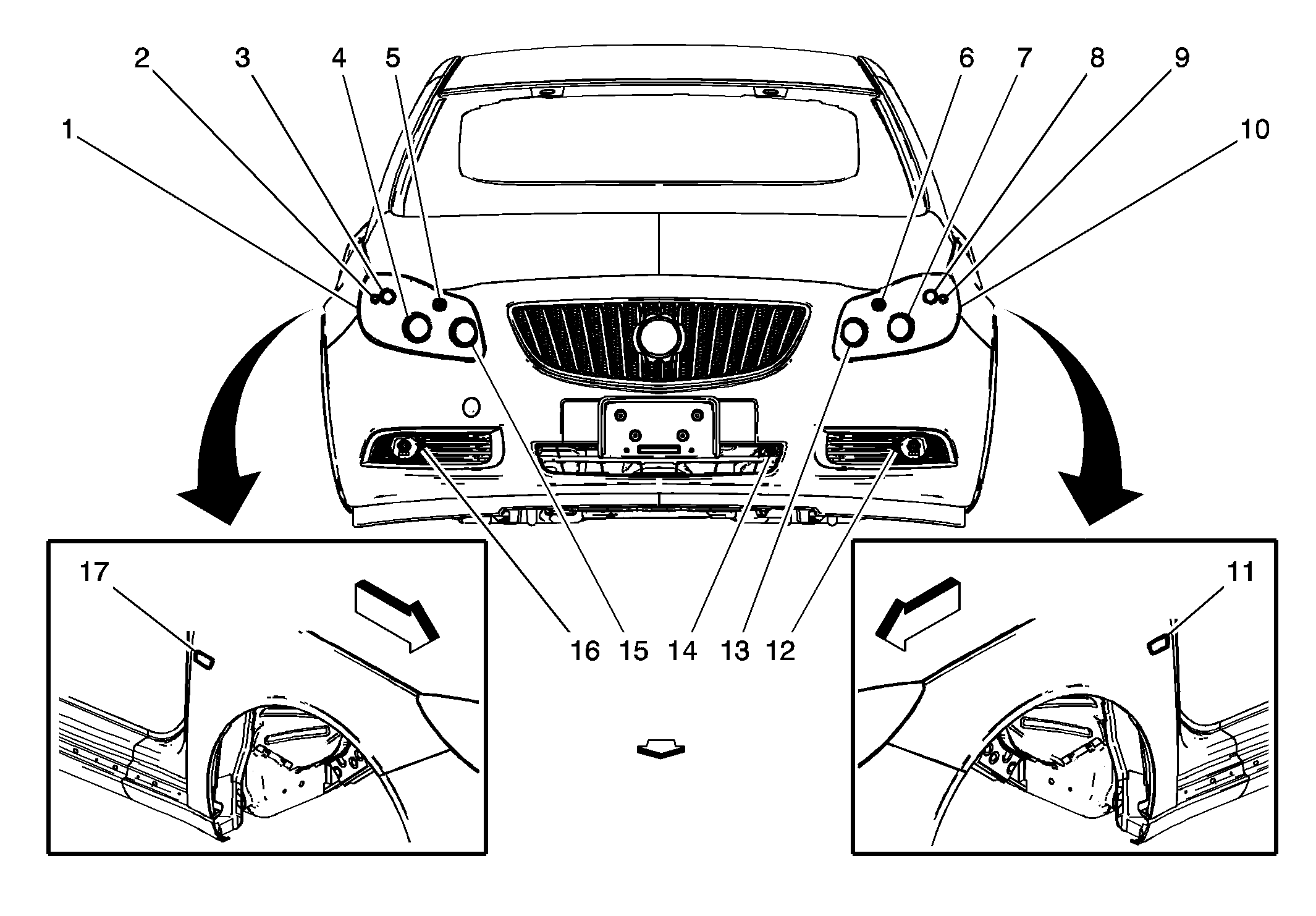

Front of Vehicle Components
Front of Vehicle Components
| Items |
|---|
| 1: E13RA Headlamp Assembly - Right |
| 2: E2RF Side Marker Lamp - Right Front (Except CZ2) E2RF Side Marker Lamp - Right Front |
| 3: E4P Park/Turn Signal Lamp - Right (T4A) |
| 4: E4H Headlamp - Right Low Beam |
| 5: E4RF Turn Signal Lamp - Right Front |
| 6: E4LF Turn Signal Lamp - Left Front |
| 7: E4G Headlamp - Left Low Beam |
| 8: E4N Park/Turn Signal Lamp - Left (T4A) |
| 9: E2LF Side Marker Lamp - Left Front (Except CZ2) E2LF Side Marker Lamp - Left Front |
| 10: E13LA Headlamp Assembly - Left |
| 11: E4Y Turn Signal Repeater Lamp - Left |
| 12: E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front |
| 13: M28L High Beam Solenoid Actuator - Left (T4F or T4A) |
| 14: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 15: M28R High Beam Solenoid Actuator - Right (T4F or T4A) |
| 16: E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front |
| 17: E4Z Turn Signal Repeater Lamp - Right |
