Left Side of Engine Compartment Components

Items
1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor (-CZ2)M75 Windshield Wiper Motor (CZ2)
2: B20 Brake Fluid Level Switch B21A Brake Fluid Pressure Sensor
3: X50D Fuse Block - Battery X50D Fuse Block - Battery X1 X50D Fuse Block - Battery X2 X50D Fuse Block - Battery X3 X50D Fuse Block - Battery X4 X50D Fuse Block - Battery X5 X50D Fuse Block - Battery X7
4: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X50A Fuse Block - Underhood X2 X50A Fuse Block - Underhood X3 (LDK)X50A Fuse Block - Underhood X3 (LEA)X50A Fuse Block - Underhood X3 (LLU)X50A Fuse Block - Underhood X3 (LTD)X50A Fuse Block - Underhood X3 (LTG)X50A Fuse Block - Underhood X4
5: B18 Battery Current Sensor B18 Battery Current Sensor
6: C1 Battery C1 Battery X2 (LEA (-))C1 Battery (LEA (-))C1 Battery (LDK)
7: K20 Engine Control Module K20 Engine Control Module X1 (LDK)K20 Engine Control Module X1 (LEA)K20 Engine Control Module X1 (LLU)K20 Engine Control Module X1 (LTG)K20 Engine Control Module X2 (LDK)K20 Engine Control Module X2 (LEA)K20 Engine Control Module X2 (LLU)K20 Engine Control Module X2 (LTG+M7U/M7W)K20 Engine Control Module X3 (LDK)K20 Engine Control Module X3 (LEA)K20 Engine Control Module X3 (LTG)

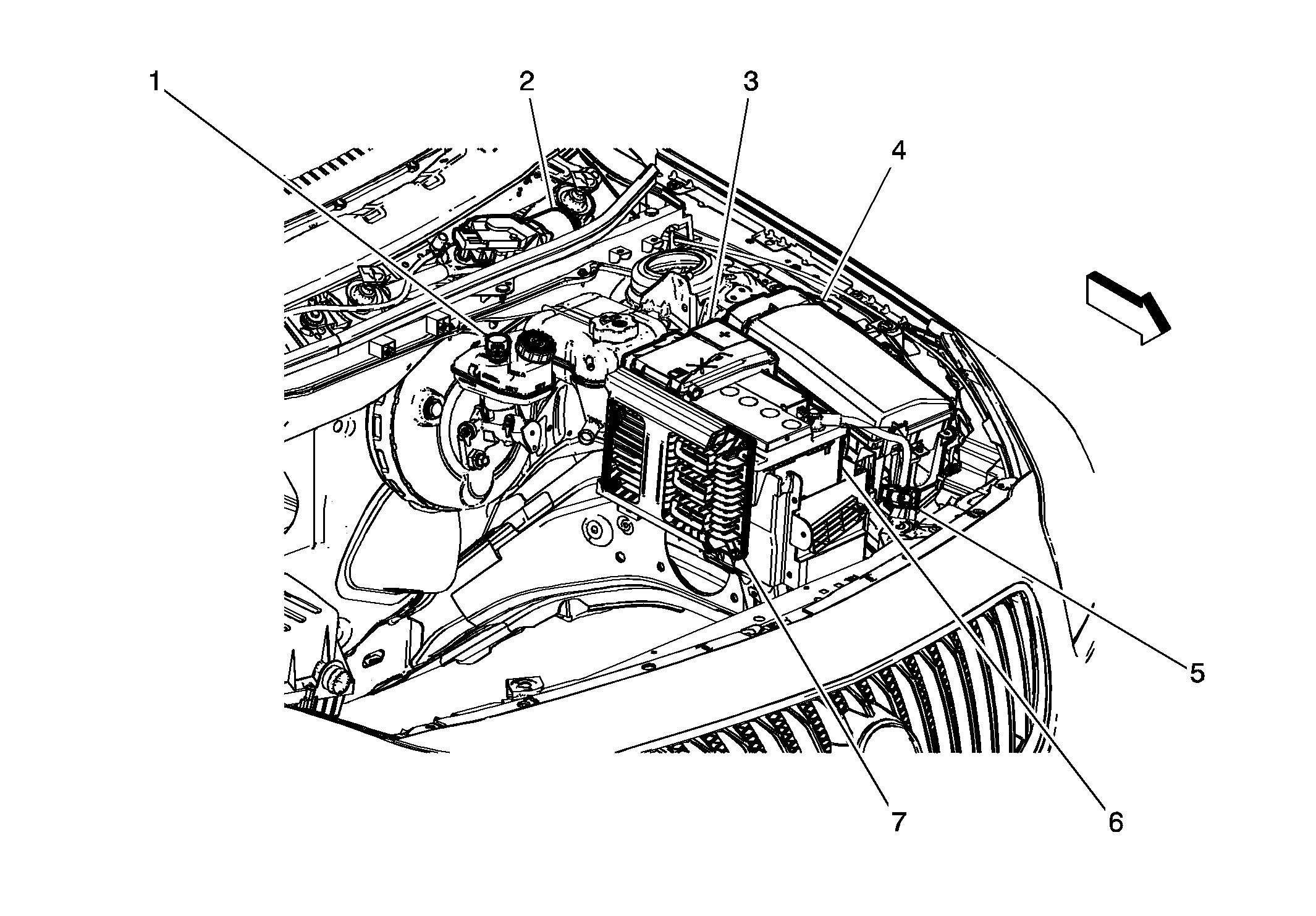

Fig 1: Left Side of Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY
