Navigation Signal Splitter Replacement

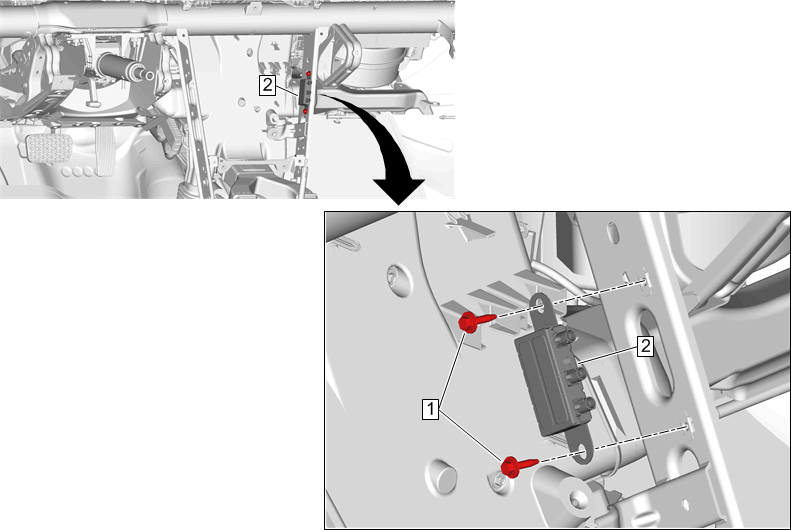

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Assembly Replacement
1	Navigation Signal Splitter Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Navigation Signal Splitter Procedure Disconnect the electrical connectors.
