Fuel Pump Power Control Module Replacement

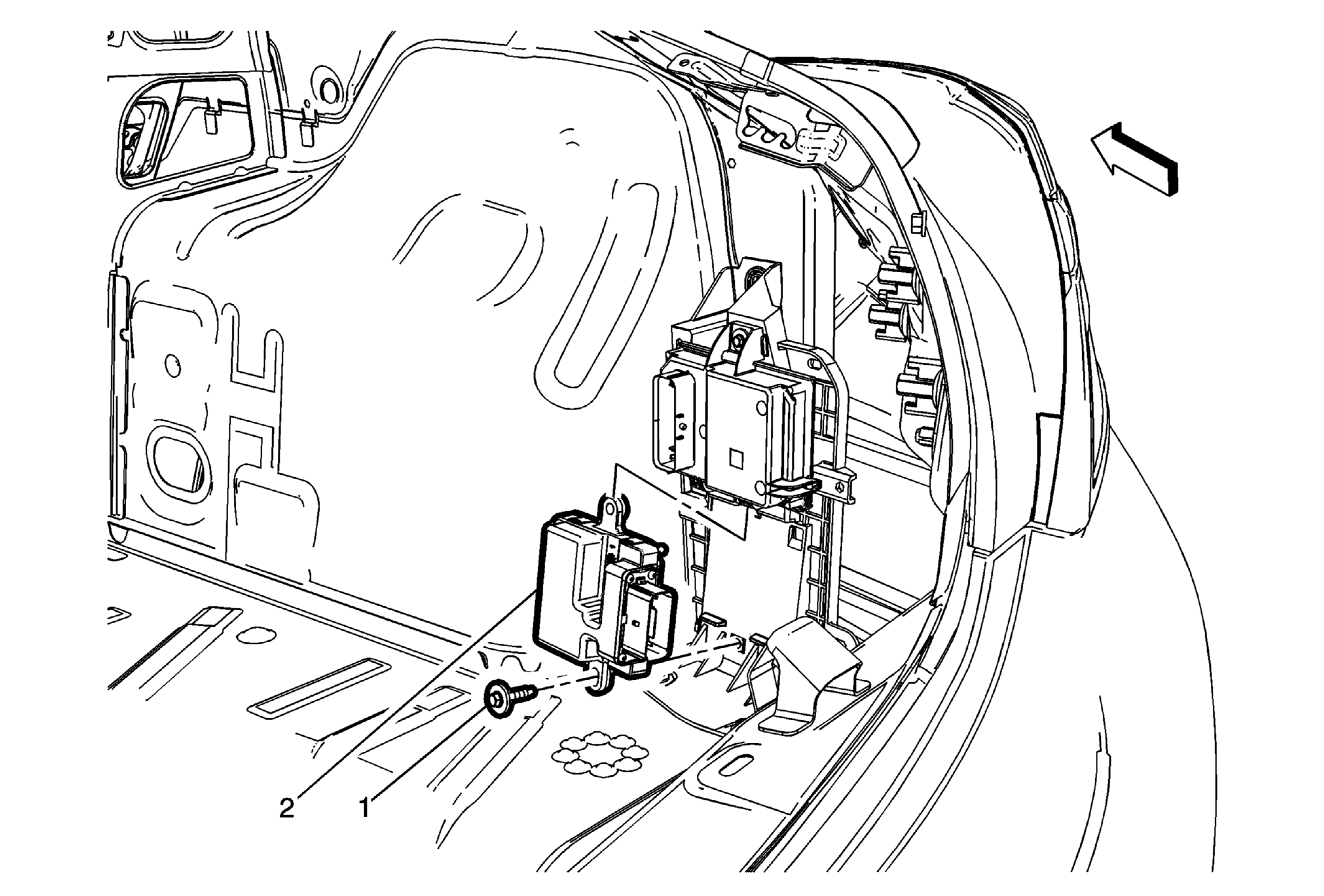

Fig 1: Fuel Pump Power Control Module
GM3471290Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the passenger rear side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (HP6, Left Side)Rear Compartment Side Trim Panel Replacement (HP6, Right Side)Rear Compartment Side Trim Panel Replacement (without HP6) .
1 Fuel Pump Power Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Fuel Pump Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to Control Module References .
