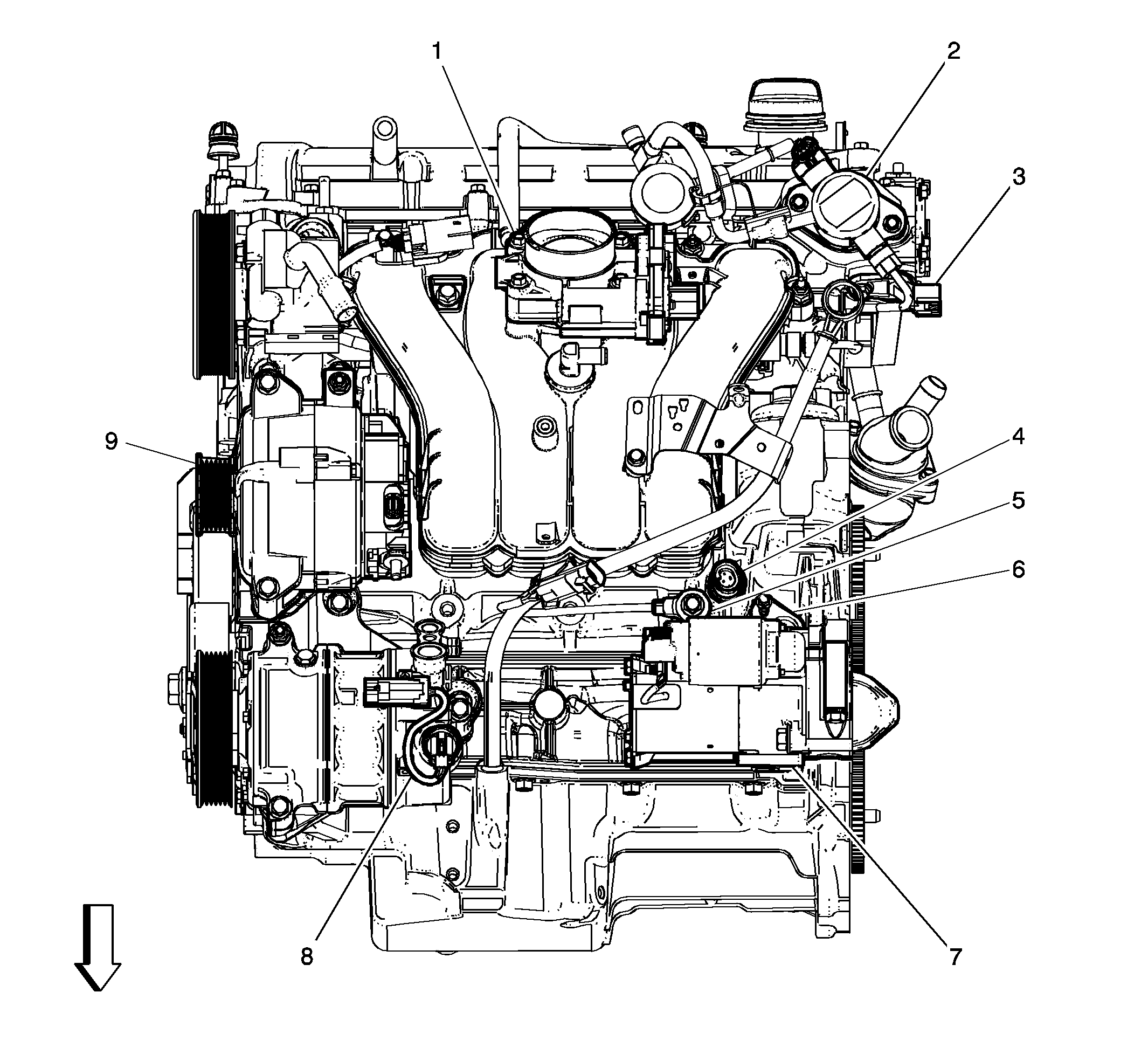

Front of Engine Components (1 of 2)
Front of Engine Components (1 of 2)
| Items |
|---|
| 1: Q38 Throttle Body Q38 Throttle Body |
| 2: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 3: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| 4: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch |
| 5: B68 Knock Sensor B68 Knock Sensor |
| 6: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 7: M64 Starter Motor M64 Starter MotorM64 Starter Motor X2 |
| 8: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 9: G13 Generator G13 Generator |
