Human Machine Interface Control Module Bypass Module Bracket Replacement

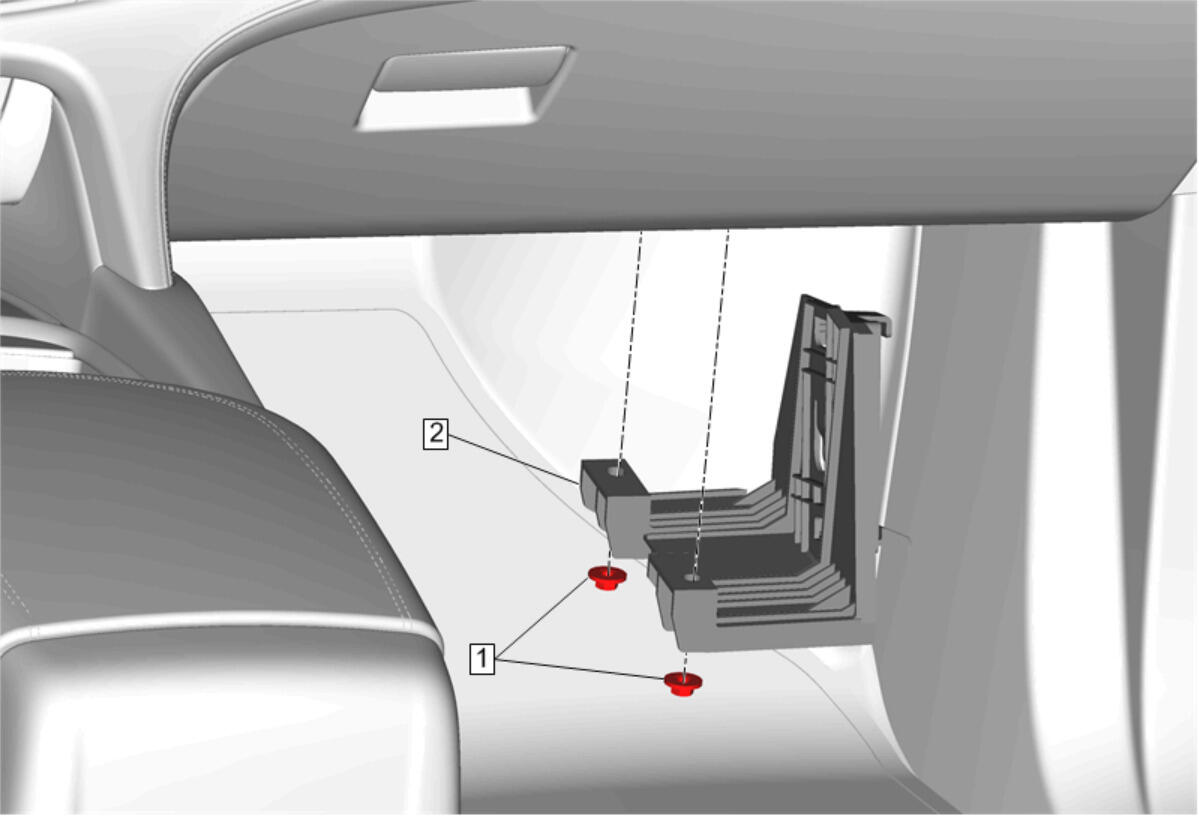

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1	Radio Bracket Nut [2x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Human Machine Interface Control Module Bypass Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Radio Bracket Nut [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Human Machine Interface Control Module Bypass Module Bracket

Procedure
