Human Machine Interface Control Module Bypass Module Replacement

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

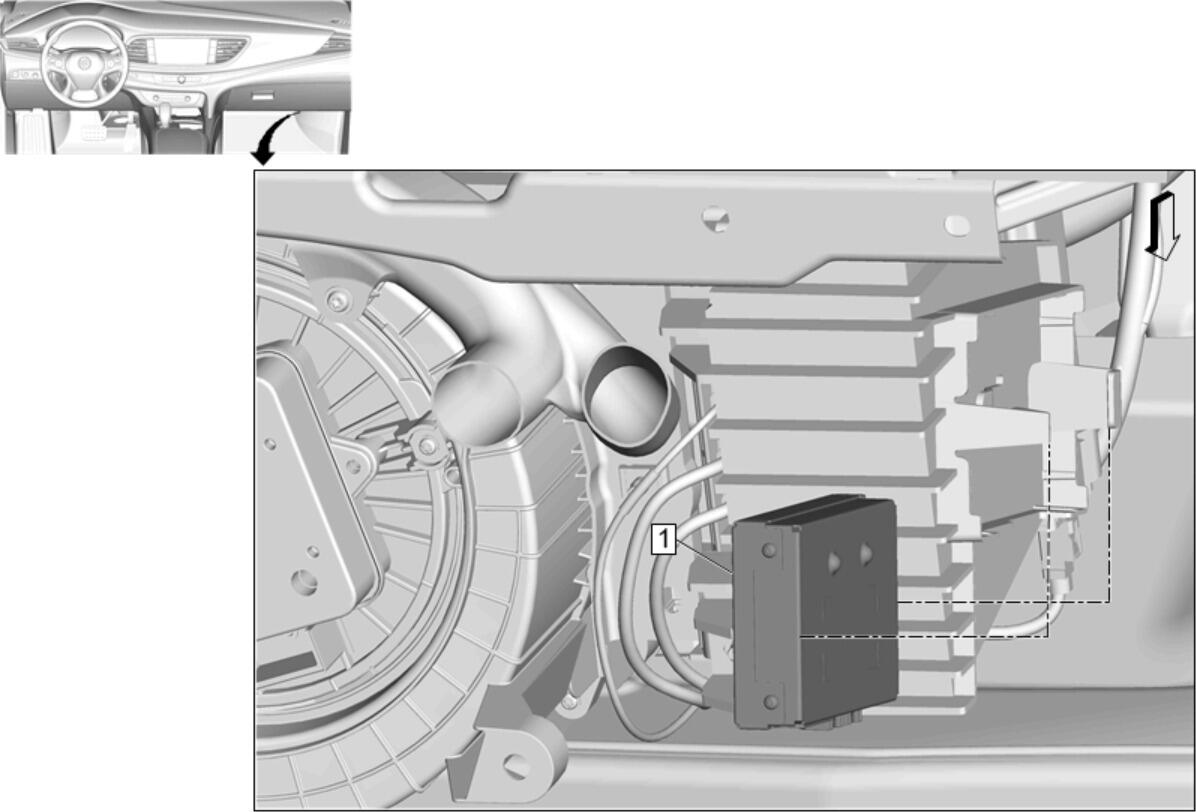

1	Human Machine Interface Control Module Bypass Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Human Machine Interface Control Module Bypass Module

Procedure
