Human Machine Interface Control Module Bracket Replacement

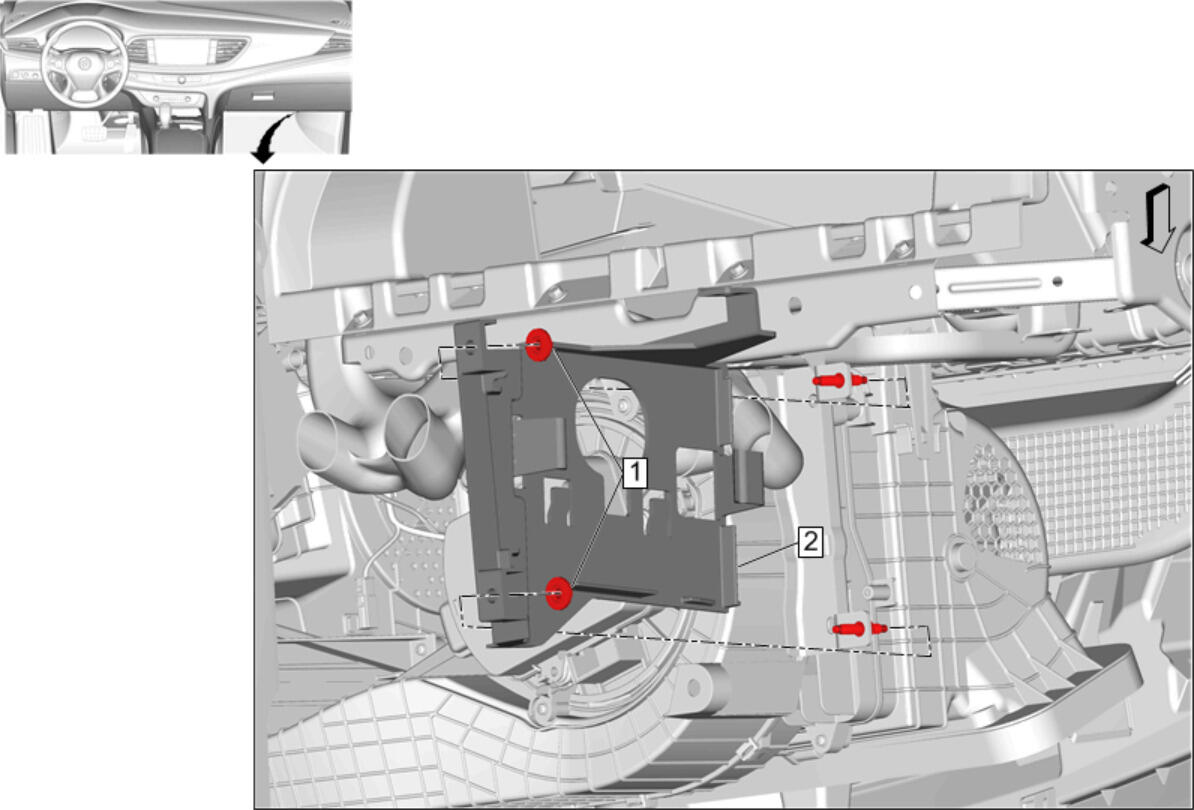

| Callout | Component Name |
|---|---|
| Preliminary Procedure Human Machine Interface Control Module Replacement |
|
| 1 | Human Machine Interface Control Module Bracket Nut [2x]
CAUTION:
Tighten 6 N.m (53 lb in) |
| 2 | Human Machine Interface Control Module Bracket |
