Installation Procedure

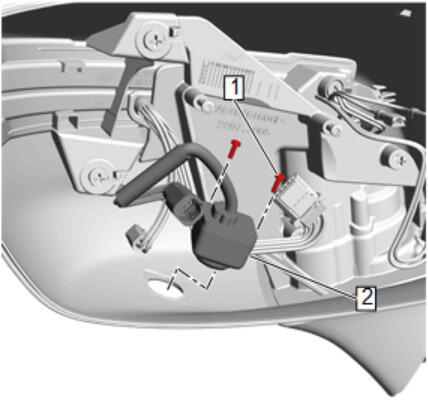

  1. GM4820788

    Side View Driver Information Camera (1) - Install

  2. Connect the electrical connector.

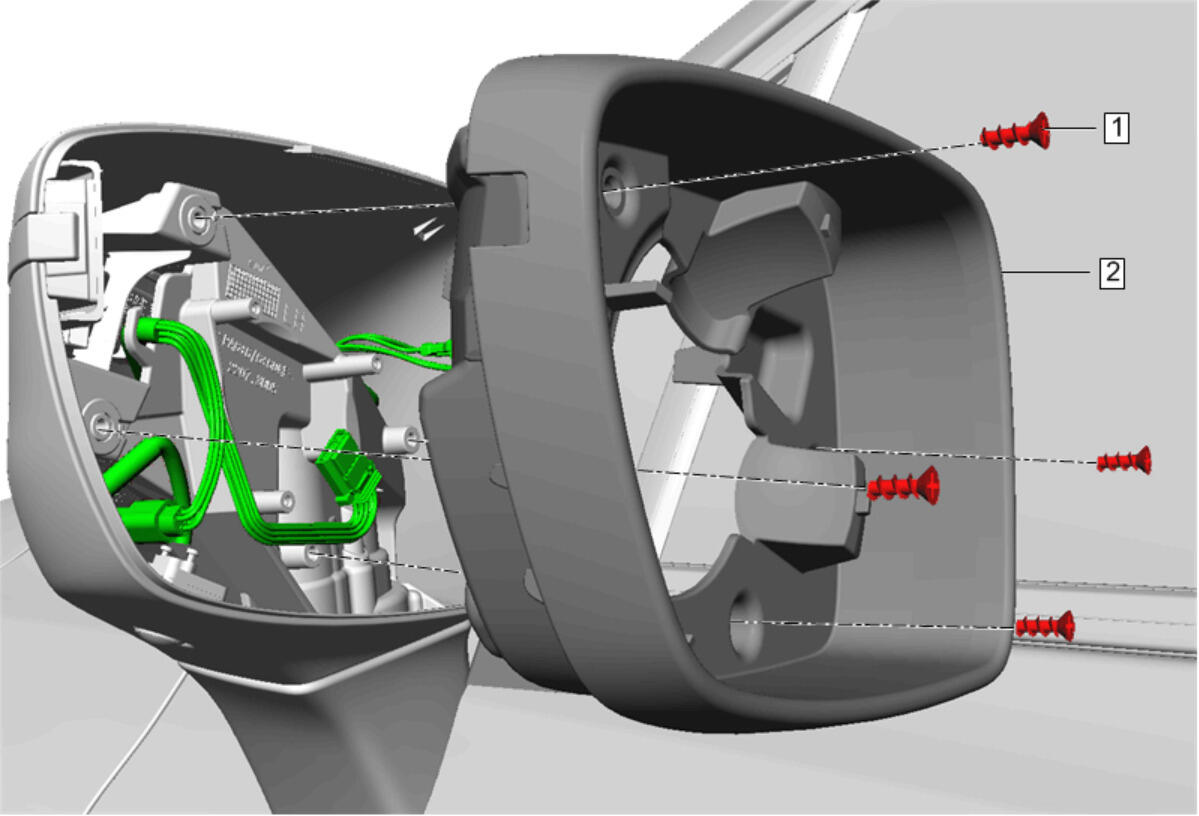

  3. GM4784095

    Outside Rearview Mirror Housing Bezel (2) - Install - Outside Rearview Mirror Housing Bezel Replacement

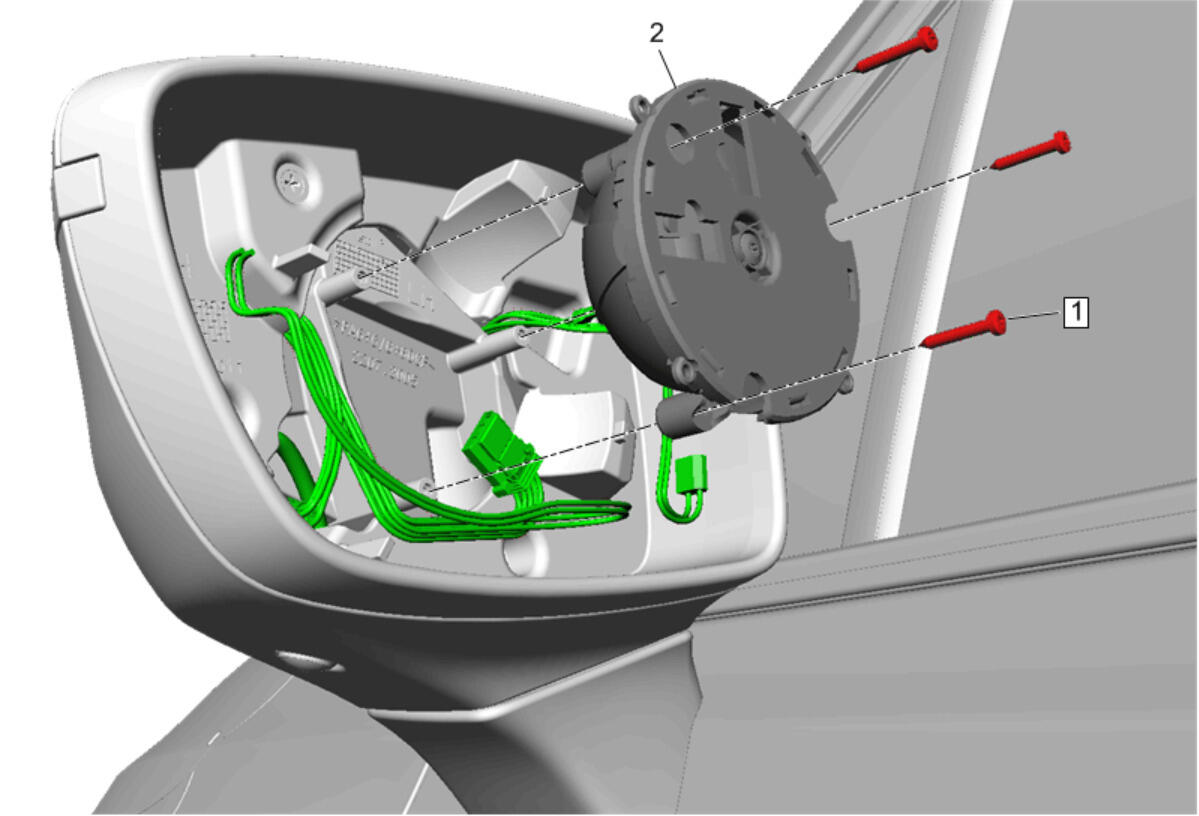

  4. GM4784088

    Outside Rearview Mirror Inner Actuator (2) - Install - Outside Rearview Mirror Actuator Replacement

  5. Connect the electrical connectors.

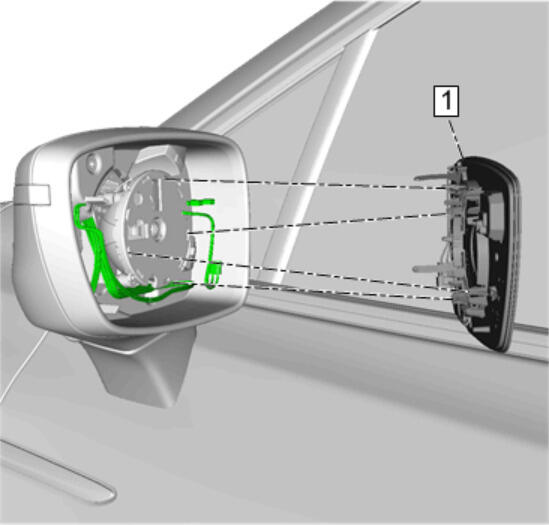

  6. GM4783762
    NOTE:

    Inspect the outside rearview mirror for proper operation.

    Outside Rearview Mirror Glass (1) - Install - Outside Rearview Mirror Glass Replacement
