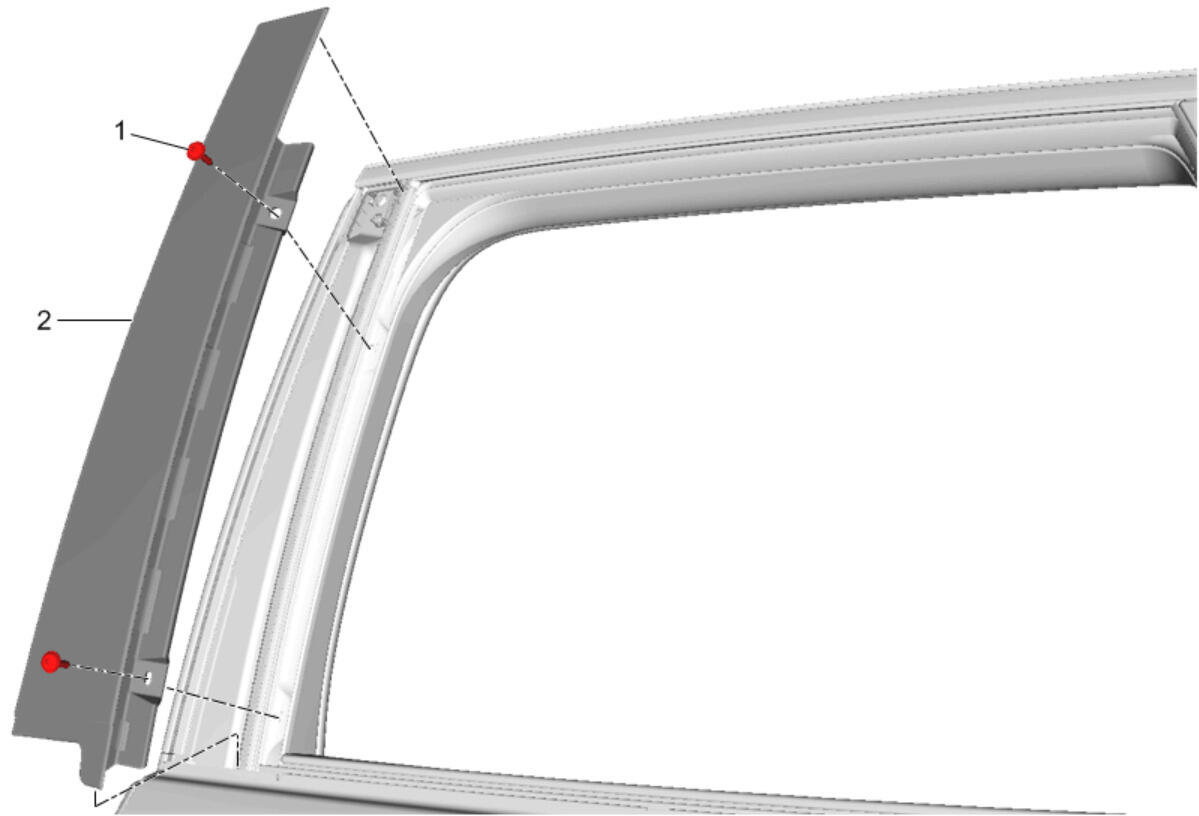

Rear Side Door Window Frame Front Applique Replacement

GM4799522

Callout

Component Name

Preliminary Procedures

Rear Side Door Window Belt Reveal Molding Replacement
Place the rear door window in the full down position.
It is not necessary to completely remove the weatherstrip. Reposition the edge of the rear side door weatherstrip. Rear Side Door Window Weatherstrip Replacement

1

Rear Side Door Window Frame Front Applique Screw [2x]
Tighten
2.5 N.m (22 lb in)

2

Rear Side Door Window Frame Front Applique

Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface.
Peel the protective film from the foam tape and install the rear applique to the vehicle.
