Removal Procedure
- Rear Window Wiper Arm - Remove - Rear Window Wiper Arm Replacement
- Rear End Spoiler - Remove - Rear End Spoiler Replacement
- Liftgate Upper Side Trim Finish Panel - Remove - Liftgate Upper Side Trim Finish Panel Replacement
- Cover the seats and carpeting to protect from broken glass.
- Disconnect the electrical connectors.
- Use BO 39032
stationary glass removal tool or equivalent in order to remove the window.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.

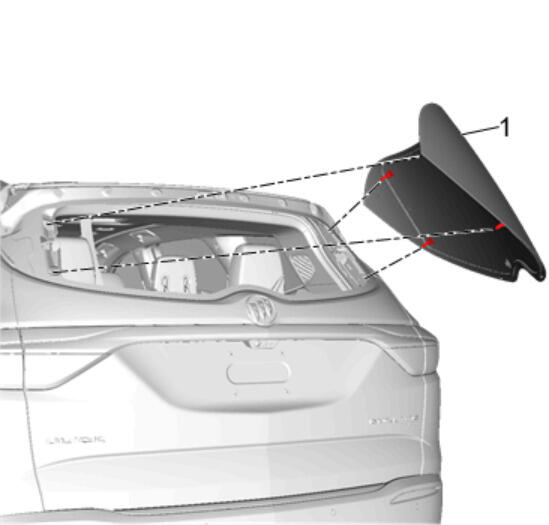

Rear Window (1) - Remove
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
WARNING:
Refer to Cracked Window Warning .
NOTE:
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
NOTE:
Keep the cutting edge of the tool against the rear window from inside the vehicle. This will allow the urethane adhesive to be separated from the window.
