Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
  2. GM4728659

    Battery Positive Cable (1) @ Engine Wiring Harness Junction Block - Remove - Battery Positive and Negative Cable Replacement (LFY)

  3. GM4733223

    Battery Hold Down Retainer (1) - Remove - Battery Replacement

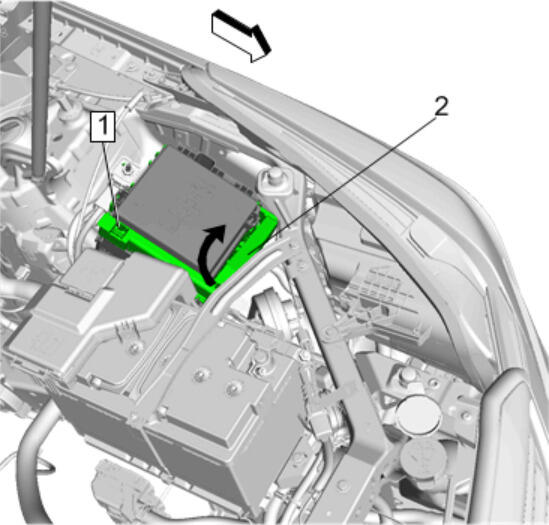

  4. GM4299052

    Release the lever lock (1) and rotate handle (2) upwards.

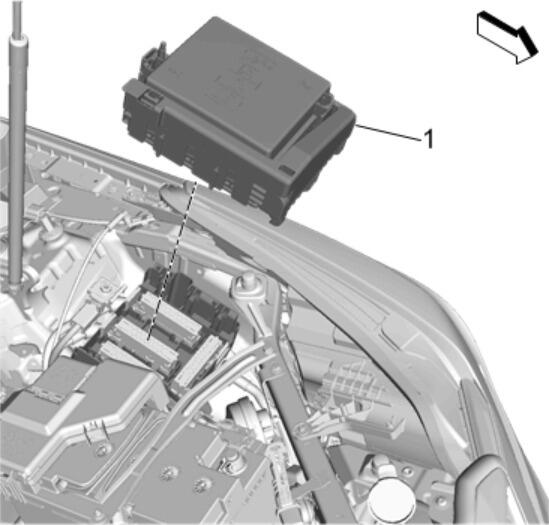

  5. GM4299056

    Engine Wiring Harness Junction Block - Remove
