Secondary Controls

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

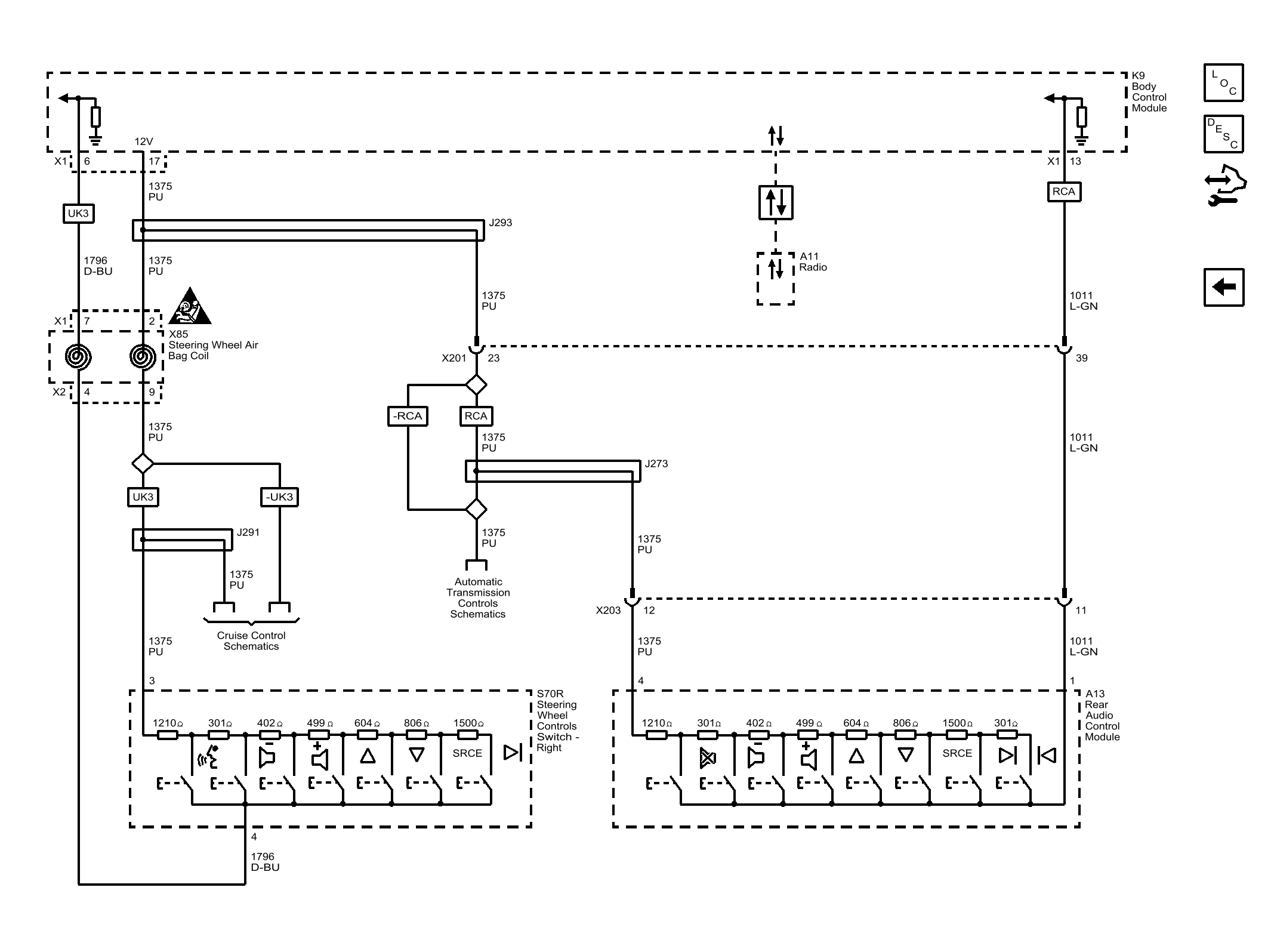

Fig 1: Secondary Controls
GM4405822Courtesy of GENERAL MOTORS COMPANY
