Removal Procedure

  1. Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Buick)Instrument Panel Knee Bolster Replacement (Chevrolet) .

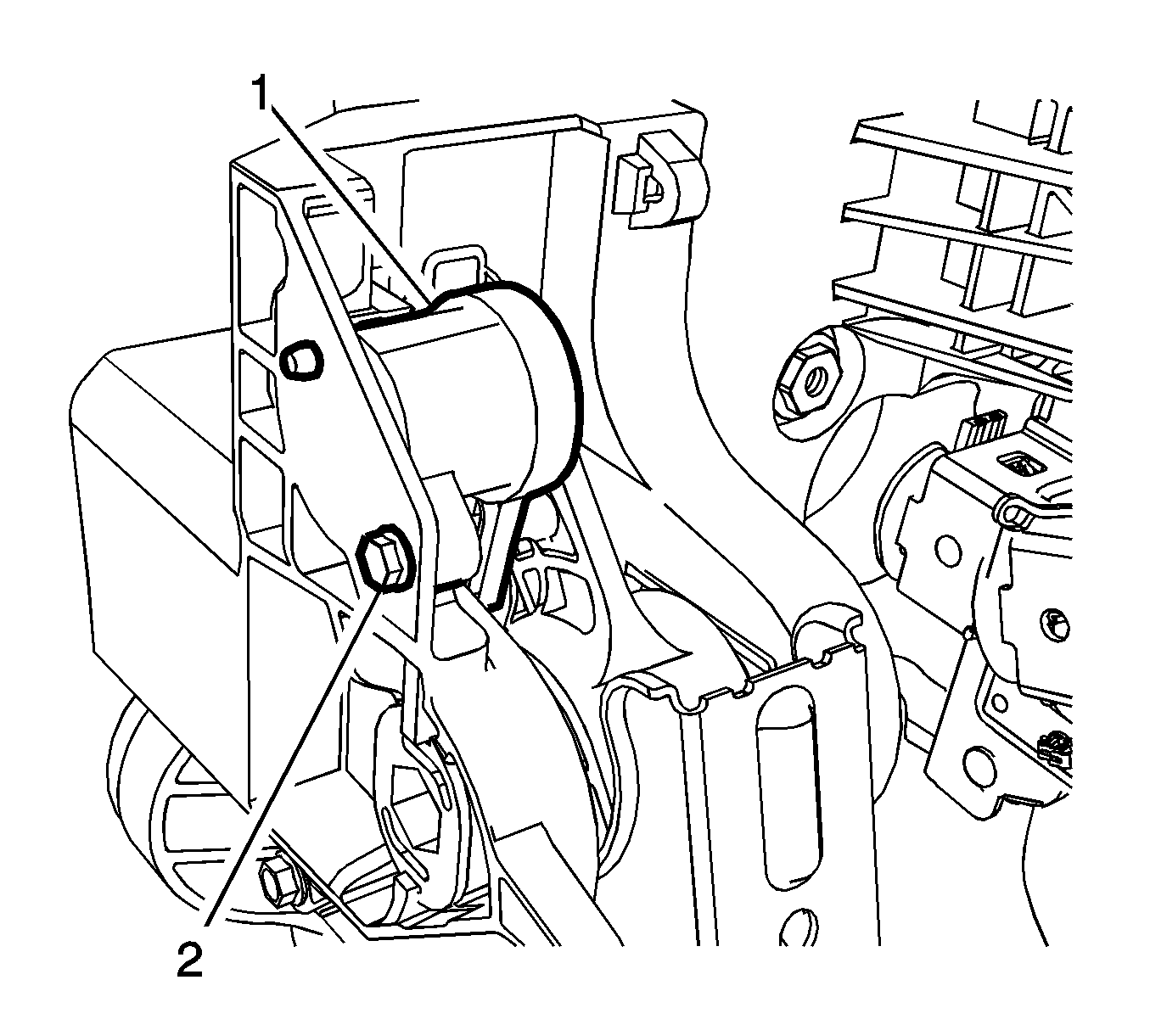

  2. GM2498838

    Remove the clutch pedal position sensor bolt (2).

  3. Remove the clutch pedal position sensor (1).
  4. Disconnect the clutch pedal position sensor wiring harness connector.
