Buick
>>
2018
>>
Encore Preferred, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Keyless Entry System And Remote Functions
>>
Schematic Wiring Diagrams
>>
Remote Function Wiring Schematics (Chevrolet)
>>
Keyless Entry - Passive Entry and Keyless Start (Chevrolet with ATH) (2 of 2)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

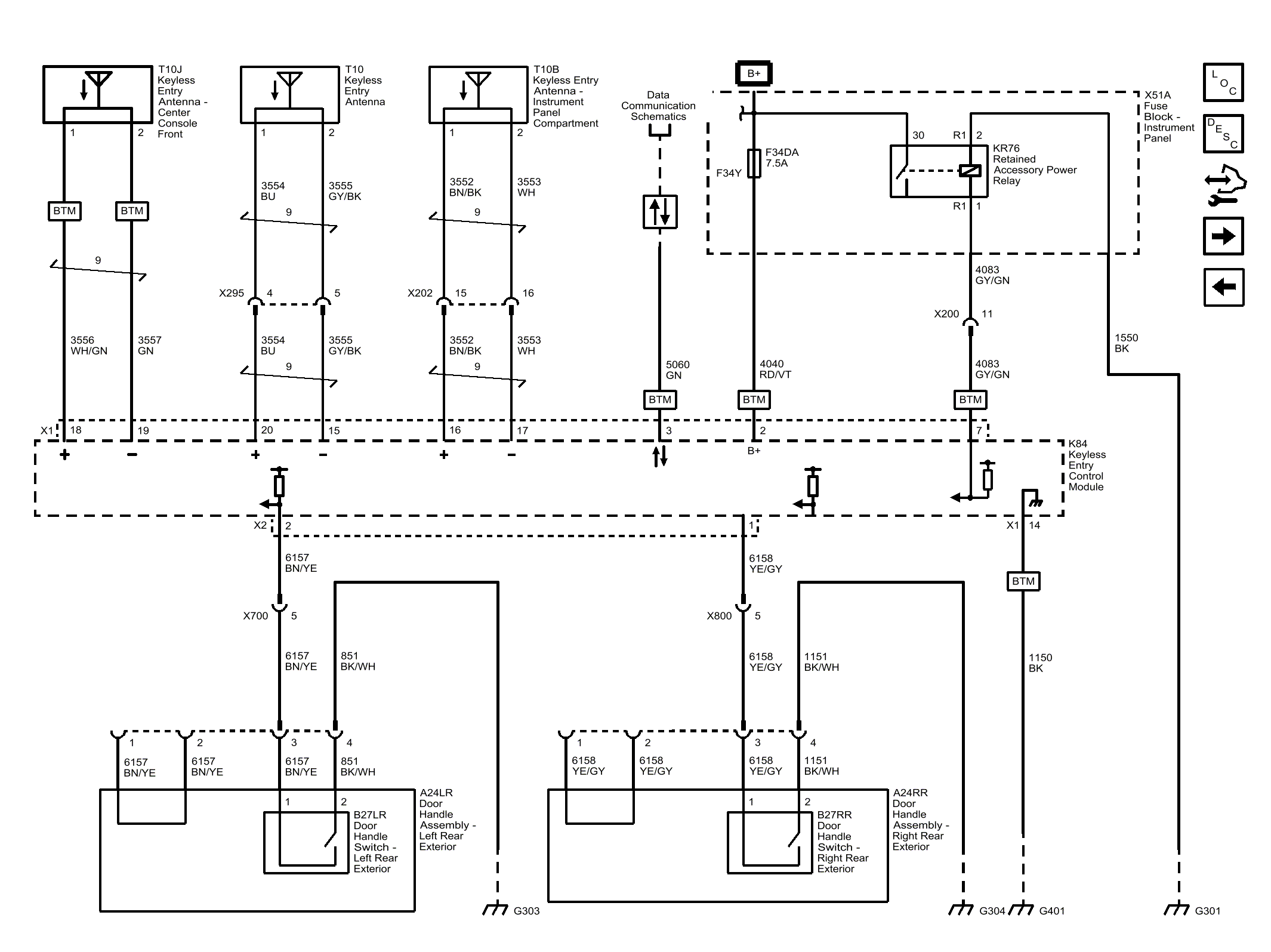

Keyless Entry - Passive Entry and Keyless Start (Chevrolet with ATH) (2 of 2)
