Multifunction Power Supply Converter Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Right Side

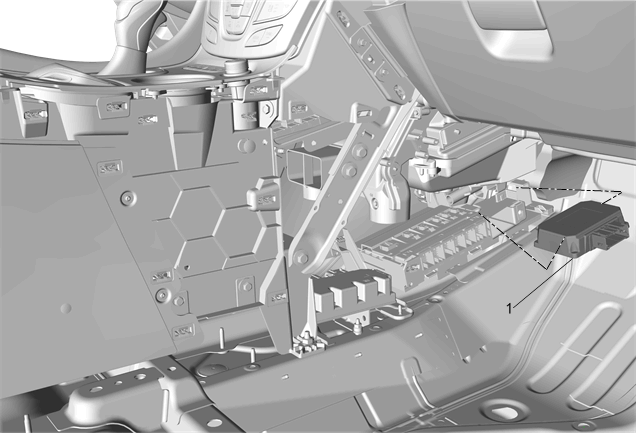

1	Multifunction Power Supply Converter Procedure Disconnect the electrical connector. Push tabs to release the converter from the body control module bracket. Control Module References for programming and set up information, if required.

Callout

Component Name

Multifunction Power Supply Converter

Procedure
