Top of the Floor Console Components

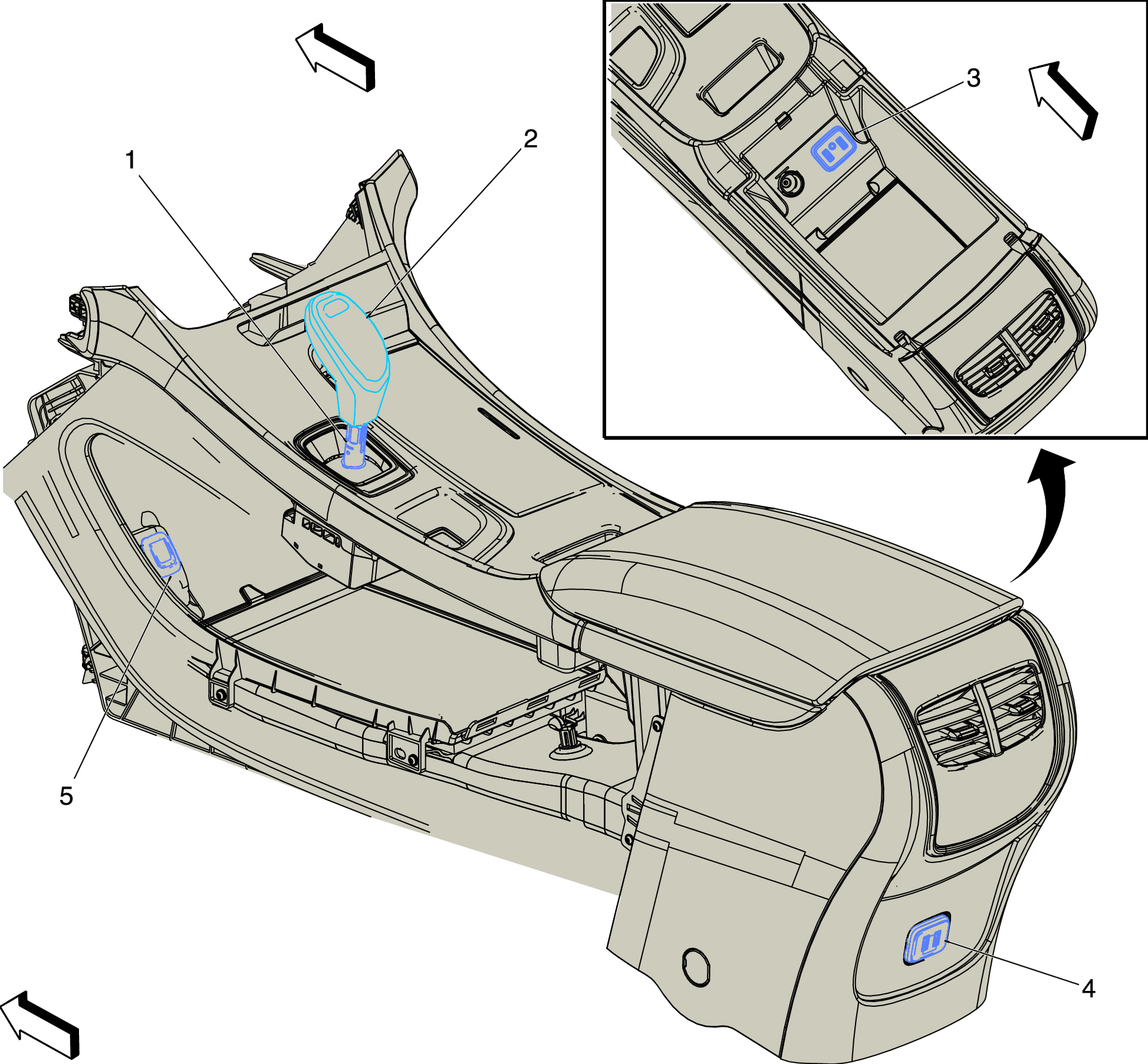

GM5001808
Top of the Floor Console Components

Items
1. S3 Transmission Shift Lever S3 Transmission Shift Lever
2. S156 Transmission Shift Lever Knob
3. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2
4. X92 USB Receptacle X92 USB Receptacle (K4C)
5. X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1
