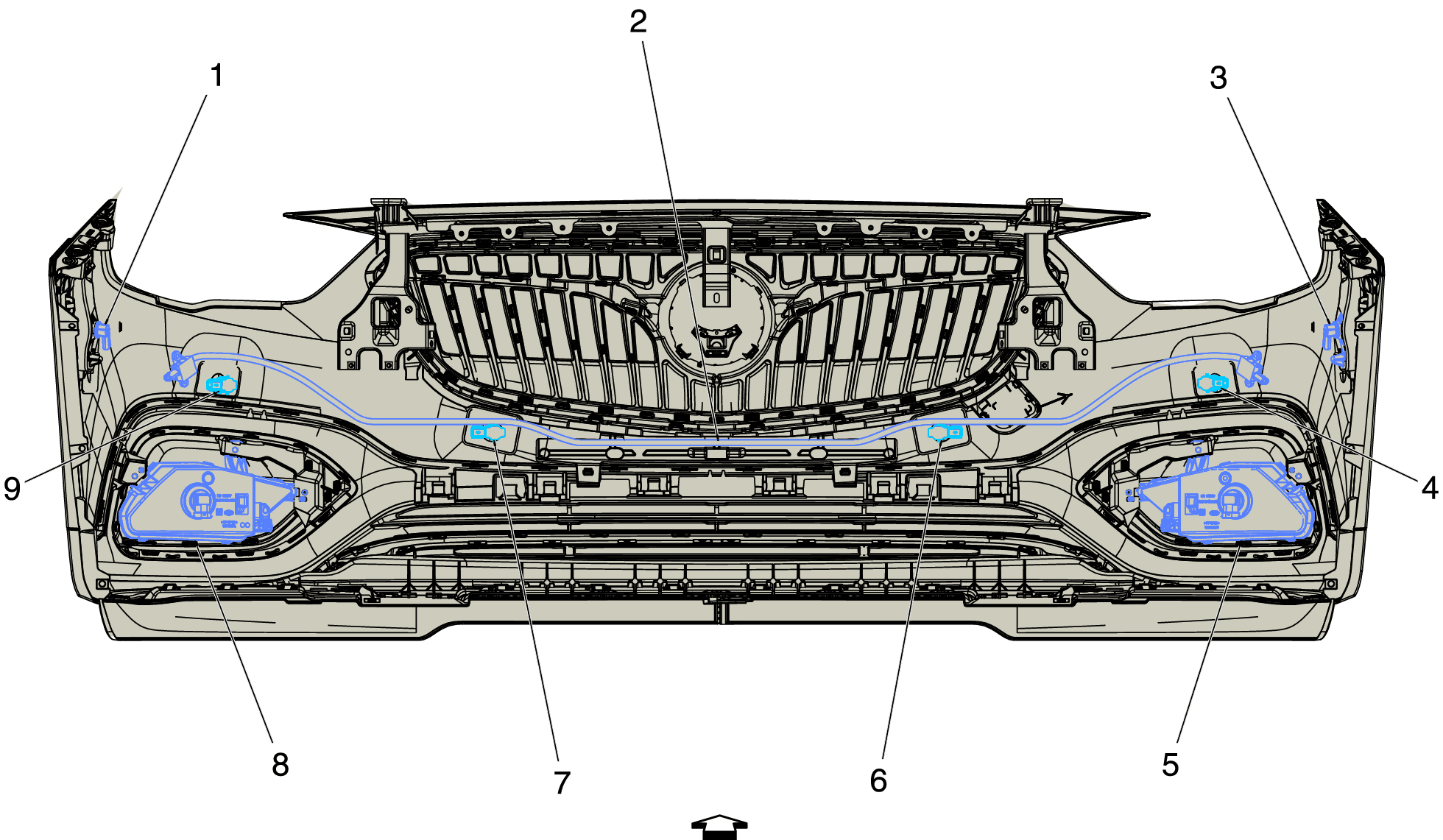

Front Fascia Components

GM4782614
Front Fascia Components

Items
1 E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front
2 B82F Pedestrian Impact Detection Sensor - Upper Beam Front (B3T) B82F Pedestrian Impact Detection Sensor - Upper Beam Front X1 (B3T)B82F Pedestrian Impact Detection Sensor - Upper Beam Front X2 (B3T)
3 E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front
4 B306D Parking Assist Sensor - Front Right Outer (UD5/UD7) B306D Parking Assist Sensor - Front Right Outer (UD5/UD7)
5 E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (T3U)
6 B306C Parking Assist Sensor - Front Right Middle (UD5/UD7) B306C Parking Assist Sensor - Front Right Middle (UD5/UD7)
7 B306B Parking Assist Sensor - Front Left Middle (UD5/UD7) B306B Parking Assist Sensor - Front Left Middle (UD5/UD7)
8 E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (T3U)
9 B306A Parking Assist Sensor - Front Left Outer (UD5/UD7) B306A Parking Assist Sensor - Front Left Outer (UD5/UD7)
