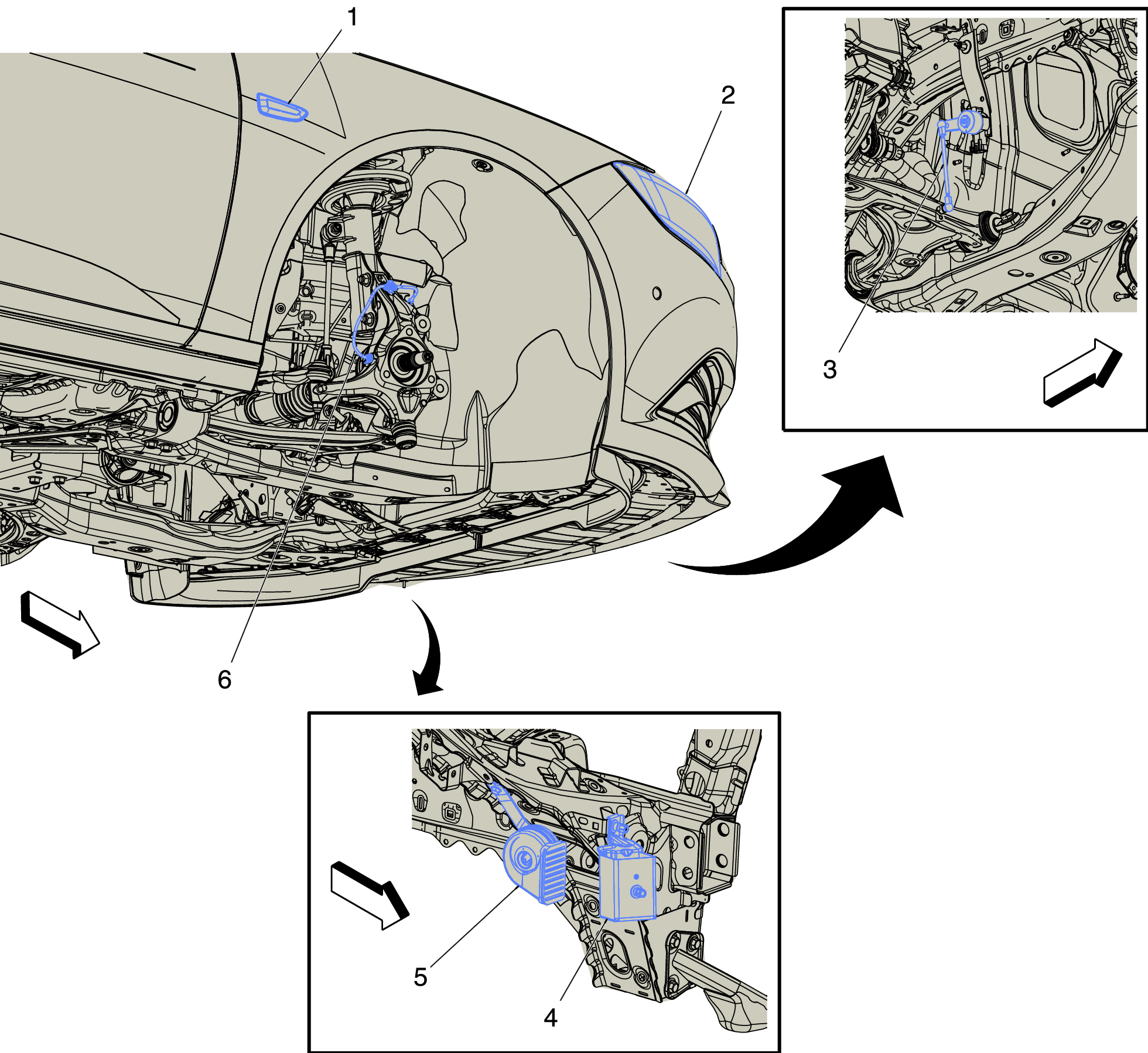

Right Front Corner Components

GM4801254
Right Front Corner Components

Items
1 E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right
2 E13RA Headlamp Assembly - Right
3 B151RF
4 P25 Power Sounder Content Theft Deterrent Alarm Module P25 Power Sounder Content Theft Deterrent Alarm Module
5 P12R Horn - Right P12R Horn - Right
6 B152RF Suspension Position Sensor - Right Front
