Front Seat Adjuster Memory Module Bracket Replacement

Callout	Component Name
Preliminary Procedures Front Seat Cushion Cover and Pad Replacement (Except GS) or Front Seat Cushion Cover and Pad Replacement (GS) Driver or Passenger Seat Adjuster Memory Module Replacement

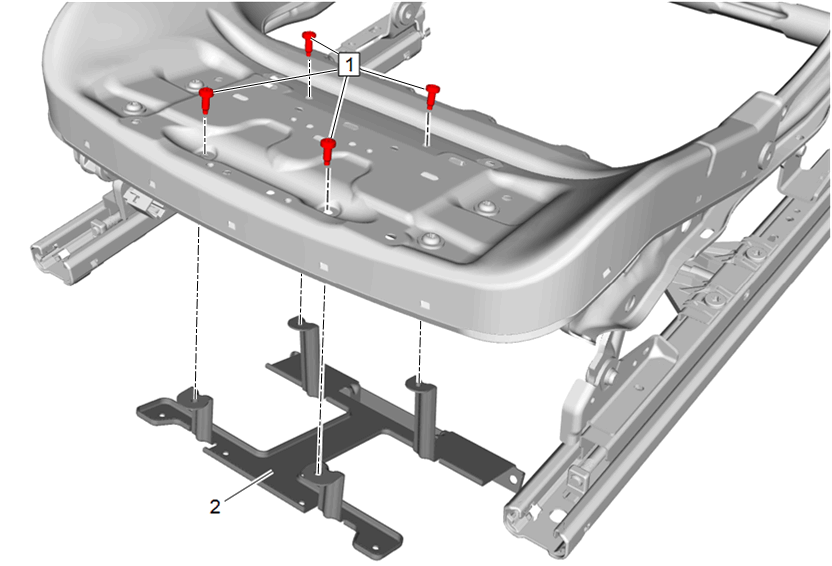

1	Front Seat Adjuster Memory Module Bracket Bolt [4x] CAUTION: Fastener Caution Tighten 4.7N.m (42 lb in)
2	Front Seat Adjuster Memory Module Bracket

Callout

Component Name

Preliminary Procedures

Front Seat Adjuster Memory Module Bracket Bolt [4x]

CAUTION:

Tighten
4.7N.m (42 lb in)

Front Seat Adjuster Memory Module Bracket
