Brake Pressure Modulator Valve Bracket Replacement

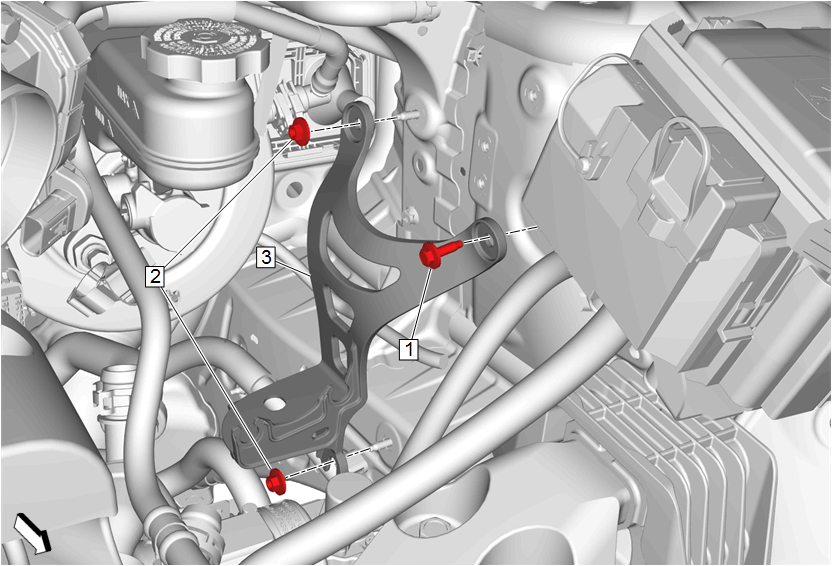

| Callout | Component Name |
|---|---|
| Preliminary Procedure Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement (2.0L LTG) or Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement (3.6L LGX) |
|
| 1 | Brake Pressure Modulator Valve Bracket Bolt
CAUTION:
Tighten 9N.m (80 lb in) |
| 2 | Brake Pressure Modulator Valve Bracket Nut[2x] Tighten 9N.m (80 lb in) |
| 3 | Brake Pressure Modulator Valve Bracket |
