Camshaft Position Sensor Replacement - Intake

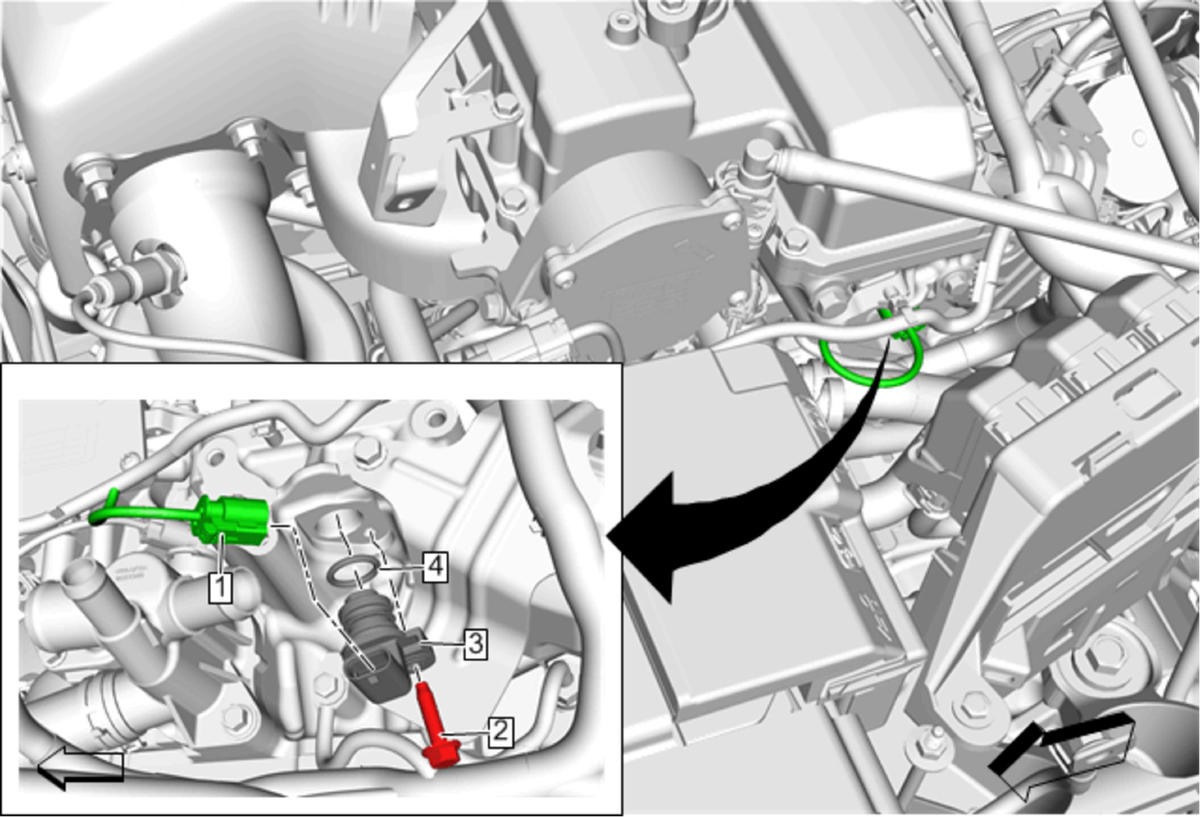

Callout	Component Name
Preliminary Procedures Refer to Intake Manifold Cover Replacement Refer to Charge Air Cooler Outlet Air Tube Replacement
1	Electrical Connector Procedure Disconnect the electrical connector.
2	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Camshaft Position Sensor
4	Camshaft Position Sensor Seal Procedure Install a NEW camshaft position sensor seal. Lubricate the NEW camshaft position sensor seal with clean engine oil.
