Removal Procedure

  1. Disconnect the battery negative cable - Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG)
  2. Raise and support the vehicle - Refer to Lifting and Jacking the Vehicle
  3. GM4589382

    Disconnect the electrical connector. (2)

  4. Electrical Connector (3)@Clip (1) - Unclip
  5. GM4589384

    Wiring Harness Retainer (1) - Remove

  6. GM4598869

    Wiring Harness Retainer (1) - Remove

  7. GM4589383

    Fuel Pump Power Control Module Nut (1) - Remove

  8. Fuel Pump Power Control Module Bolt (2) - Remove

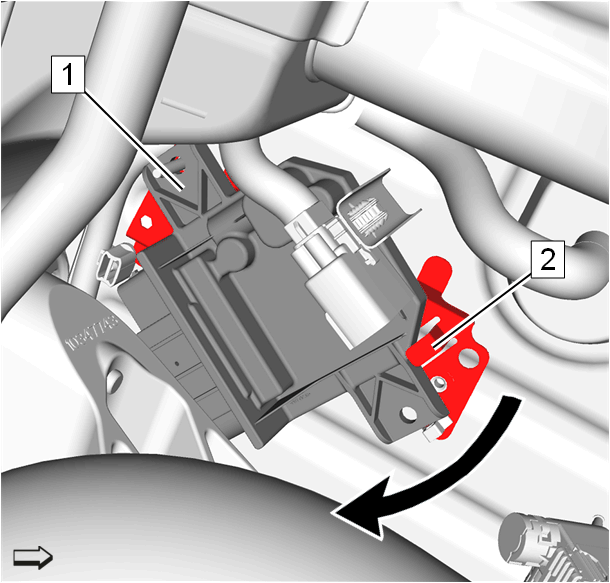

  9. GM4598872

    Fuel Pump Power Control Module (1)@Bracket (2) - Remove - Rotate clockwise

  10. GM4598870

    Disconnect the electrical connector. (1)

  11. Fuel Pump Power Control Module (2) - Remove
