Installation Procedure

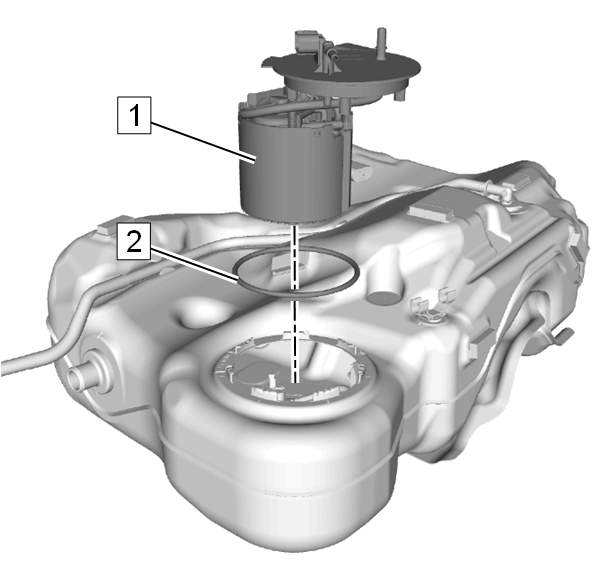

O-Ring (2) - Install NEW
- Fuel Tank Fuel Pump Module (1) - Install

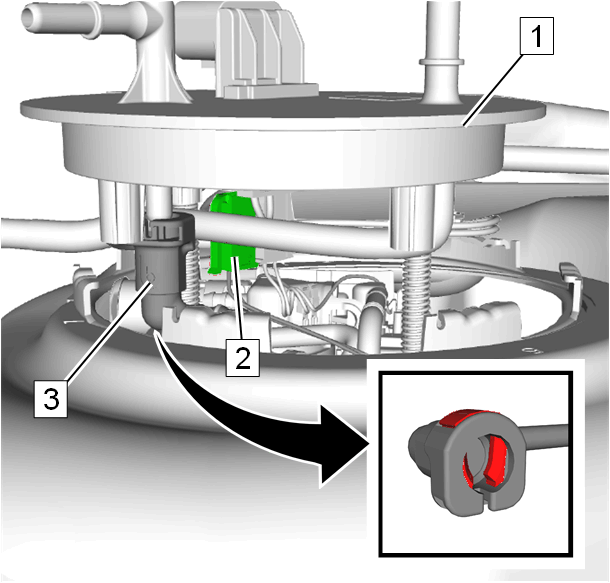

Fuel Sender (1) - Connect - Refer to Plastic Collar Quick Connect Fitting Service
Connect the electrical connector. (2)
- (3) - Connect - Refer to Plastic Collar Quick Connect Fitting Service
- NOTE:
Do NOT use impact tools. Significant force will be required to release the lock ring. The use of a hammer and screwdriver is not recommended. Secure the fuel tank in order to prevent fuel tank rotation.

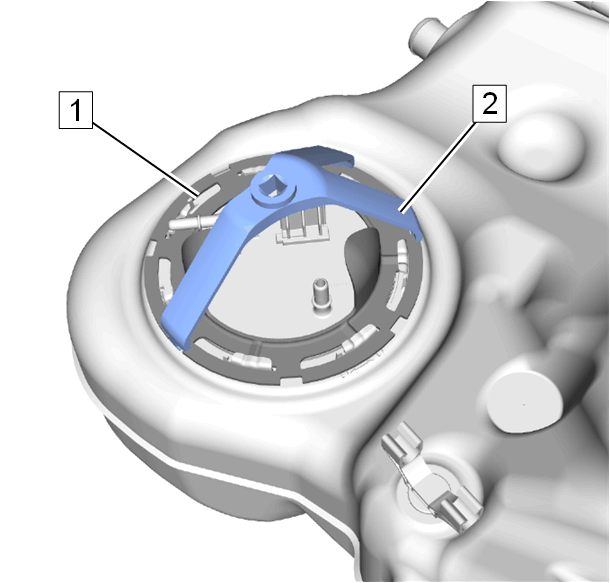

Fuel Pump Lock Ring (1) - Install - Use the special tool: CH-45722 Fuel Sender Lock Ring Wrench (2)

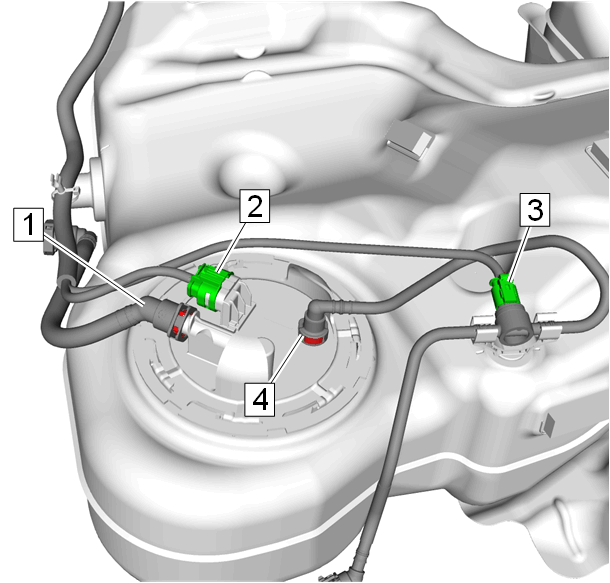

Fuel Feed Pipe - Fuel Pump Module to Underbody (4) - Connect - Refer to Plastic Collar Quick Connect Fitting Service

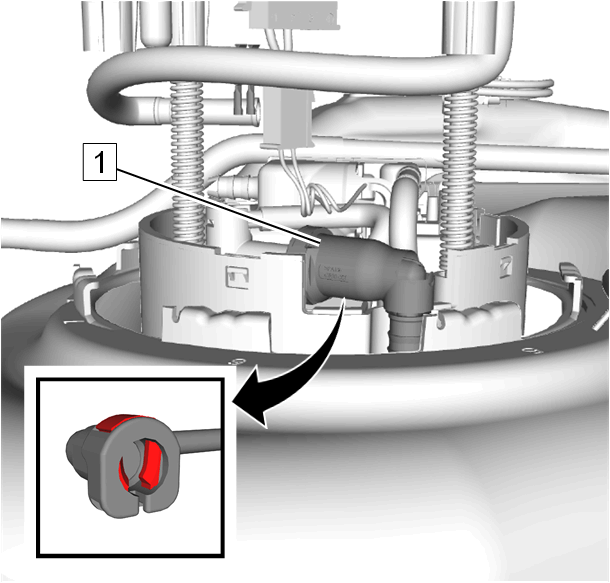

- Fuel Tank Vent Pipe (1) - Connect - Refer to Plastic Collar Quick Connect Fitting Service
- Connect the electrical connector:
- Fuel Tank Fuel Pump Module (2)
- Fuel Pressure Sensor (3)
- Install the fuel tank - Refer to Fuel Tank Replacement (AWD) or Fuel Tank Replacement (FWD)
- Connect the battery negative cable - Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG)
