Installation Procedure

  1. Lower the vehicle.

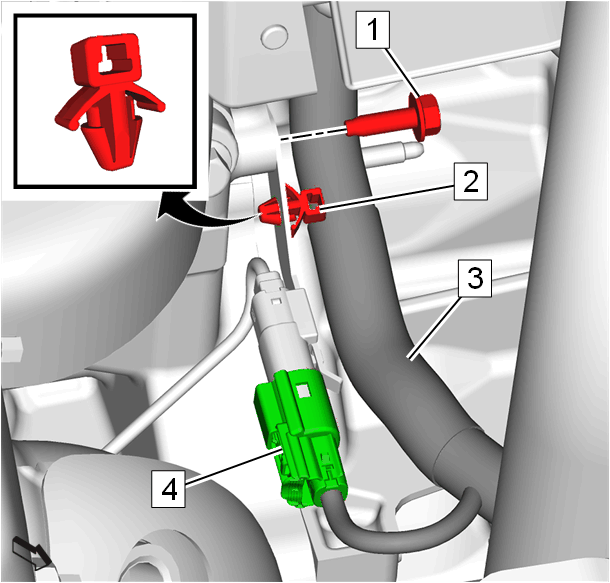

  2. GM4604769

    Oil Pump Flow Control Valve@Vehicle - Install

    3. CAUTION:

    Refer to: Fastener Caution

  3. Oil Pump Flow Control Valve Bracket Fastener (1) - Install and tighten10N.m (89 lb in)
  4. Wiring Harness (3) - Reposition
  5. Wiring Harness Clip (2) - Install
  6. Connect the electrical connector. (4)
  7. Raise the vehicle.

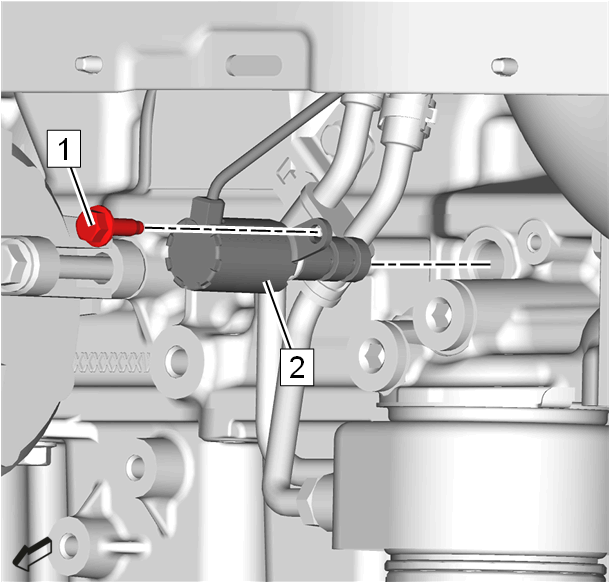

  8. GM4604770

    Oil Pump Flow Control Valve (2) - Install

  9. Oil Pump Flow Control Valve Bolt (1) - Install and tighten10N.m (89 lb in)
  10. Oil Pump Flow Control Valve Heat Shield - Install - Refer to Oil Pump Flow Control Valve Heat Shield Replacement
