Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Position the intermediate steering shaft (1) in the vehicle.
Courtesy of GENERAL MOTORS COMPANY

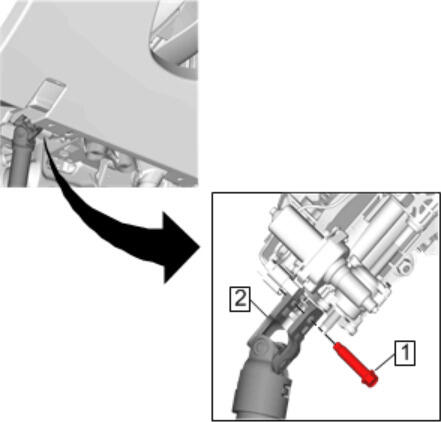

Intermediate Steering Shaft (2)@Steering Gear - Install

CAUTION:

Intermediate Steering Shaft Lower Bolt (1) - Install and tighten 55 N.m (41 lb ft)
1. Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry.
2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

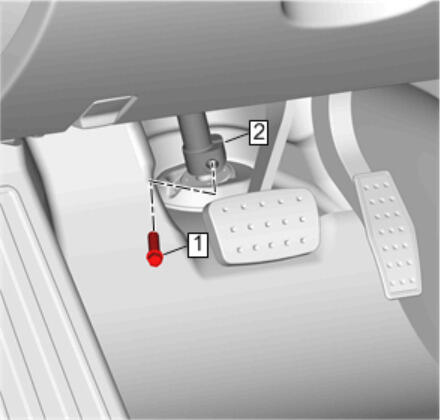

Intermediate Steering Shaft (2)@Steering Column - Install
Intermediate Steering Shaft Upper Bolt (1) - Install and tighten 42 N.m (31 lb ft)
1. Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry.
2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers
Center the steering angle sensor. Steering Wheel Angle Sensor Centering
