Air Distributor Case Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

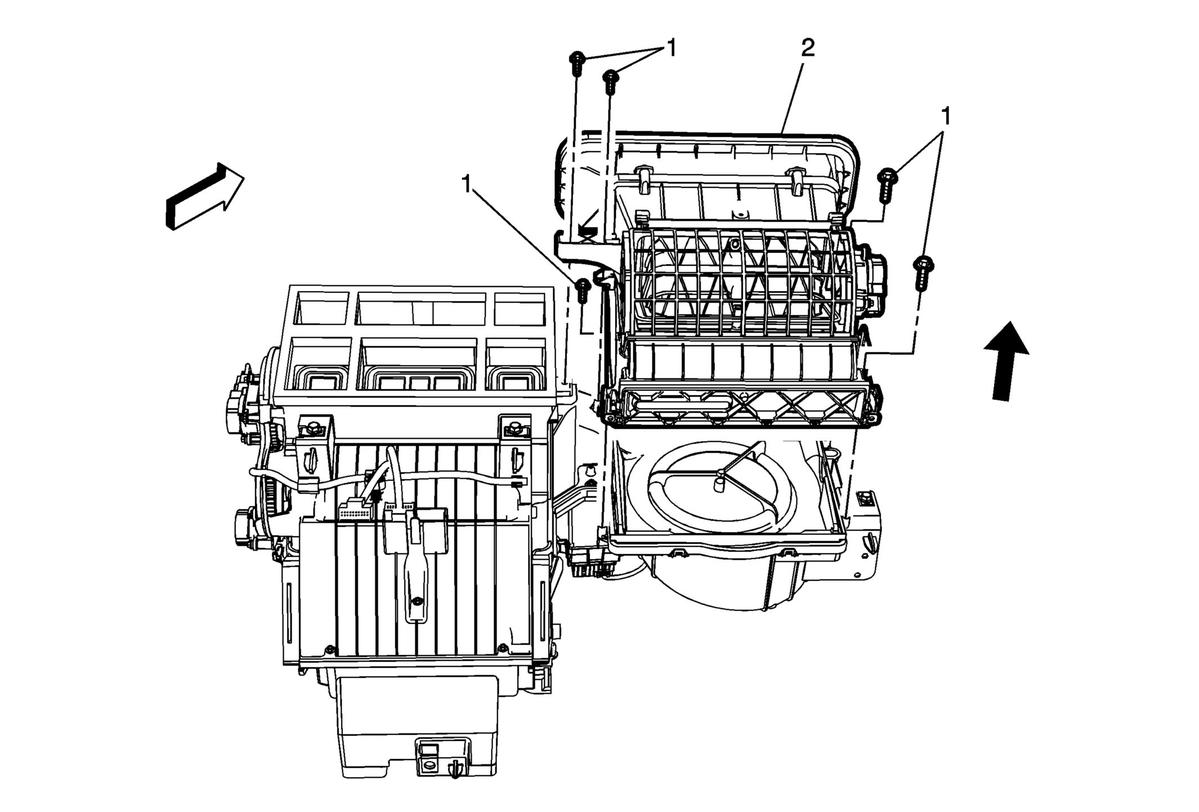

Call out	Component Name
Preliminary Procedures Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . Disconnect the electrical connectors as necessary.
1	Air Distributor Case Fastener (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 2.0 N.m (18 lb in)
2	Air Distributor Case Procedure Transfer all part as necessary.

Call out

Component Name

Preliminary Procedures

Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation .
Disconnect the electrical connectors as necessary.

Air Distributor Case Fastener (Qty: 5)

CAUTION:

Refer to Fastener Caution .

Tighten
2.0 N.m (18 lb in)

Air Distributor Case
Procedure
Transfer all part as necessary.
