Blower Motor Control Module Replacement (With RPO C67 CJ2)
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

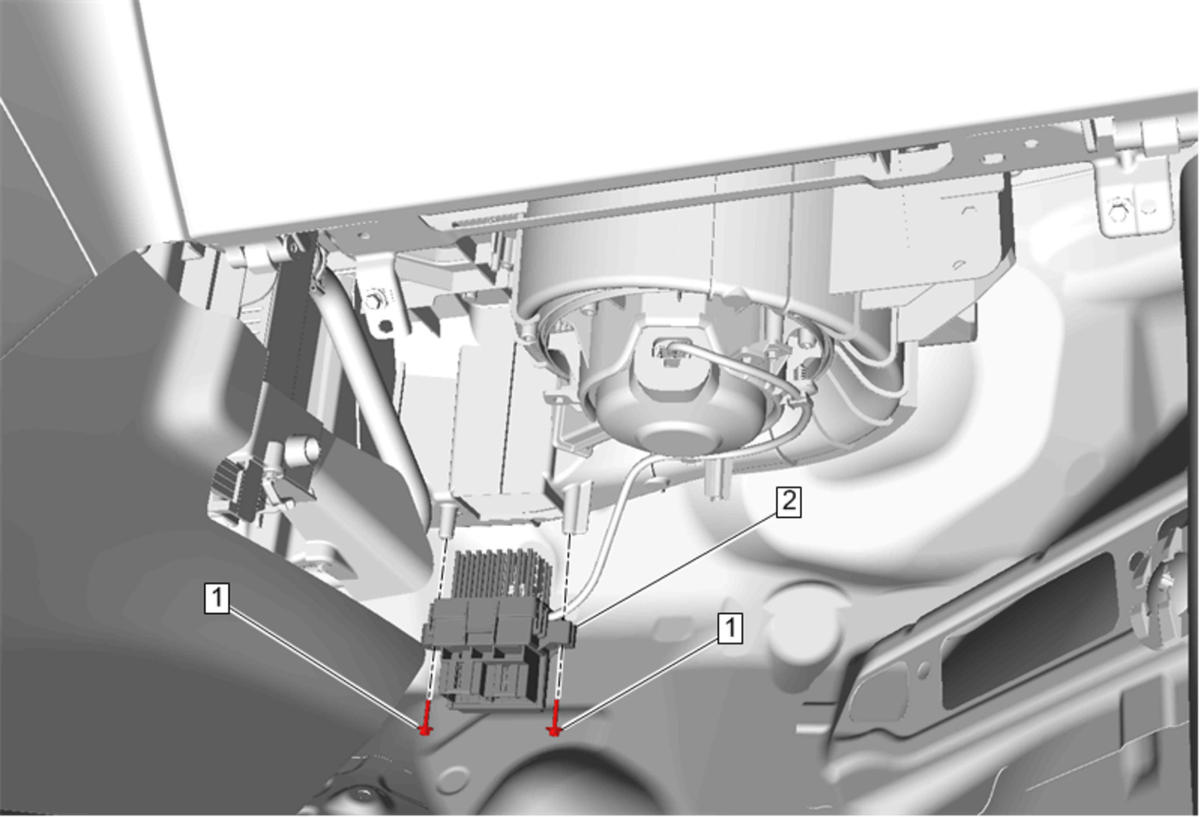

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement (Chevrolet)Instrument Panel Lower Trim Panel Insulator Replacement (Buick) |
|
| 1 | Blower Motor Control Module Bolt[2x]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Blower Motor Control Module Procedure Disconnect the electrical connectors. |
