Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

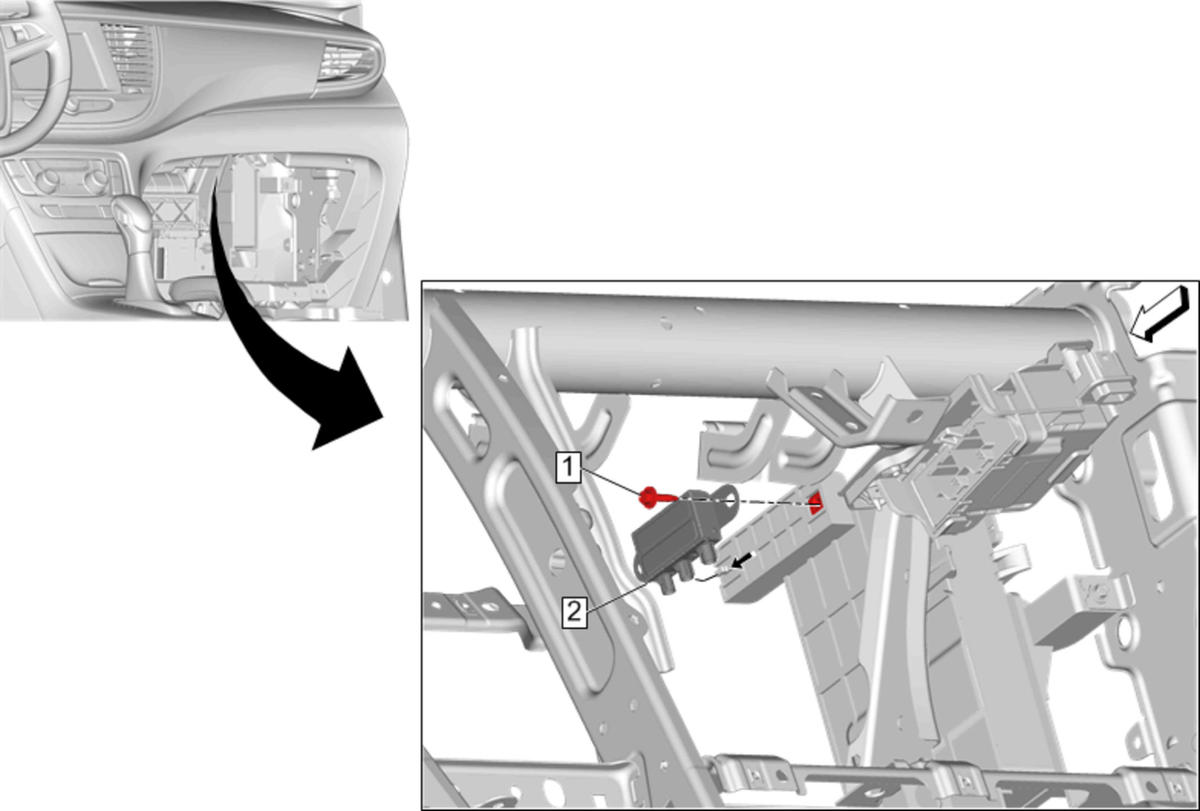

Callout	Component Name
Preliminary Procedure Instrument Panel Compartment Replacement
1	Navigation Signal Splitter Bracket Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Navigation Signal Splitter Procedure Disconnect the electrical connectors. Slide the navigation signal splitter forward to release from the communication interface module bracket.

Callout

Component Name

Preliminary Procedure
Instrument Panel Compartment Replacement

Navigation Signal Splitter Bracket Bolt

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Navigation Signal Splitter

Procedure

Disconnect the electrical connectors.
Slide the navigation signal splitter forward to release from the communication interface module bracket.
