Removal Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9)
- Steering Column Assembly - Remove - Steering Column Replacement (Buick, Mexico, NJ1, With BTM, With N06)Steering Column Replacement (Buick, Canada/United States, NJ1, With BTM, Without N06)Steering Column Replacement (Chevrolet, Mexico, NJ1, With BTM, With N06)Steering Column Replacement (Chevrolet, Canada/United States, NJ1, With BTM, Without N06)Steering Column Replacement (Chevrolet, Canada/United States, NJ1, Without BTM, Without N06)Steering Column Replacement (Chevrolet, Mexico, NJ1, Without BTM, Without N06)Steering Column Replacement (Mexico, N40)
Air Inlet Valve Actuator(2) - Left Side - Remove - Air Inlet Valve Actuator Replacement - Left Side (With CJ2)

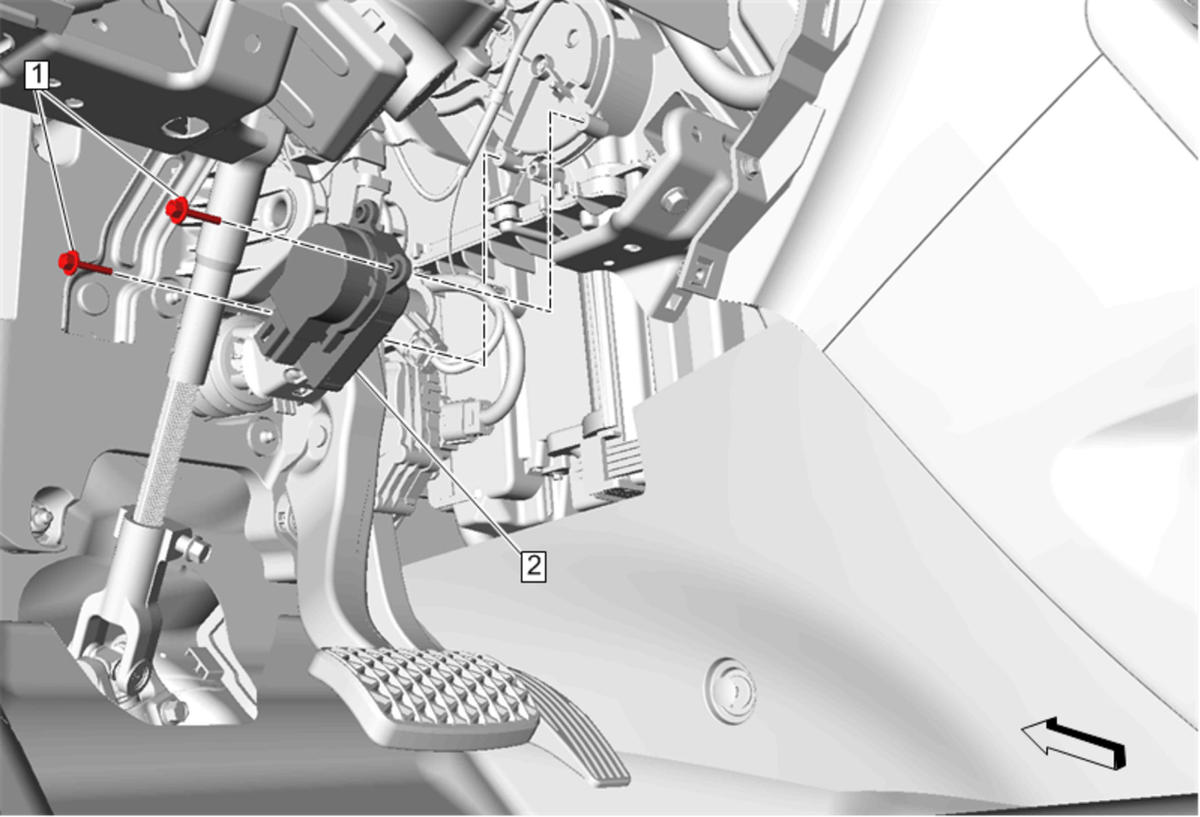

Mode Control Cam Actuator Bolt(1) - Remove[2x]

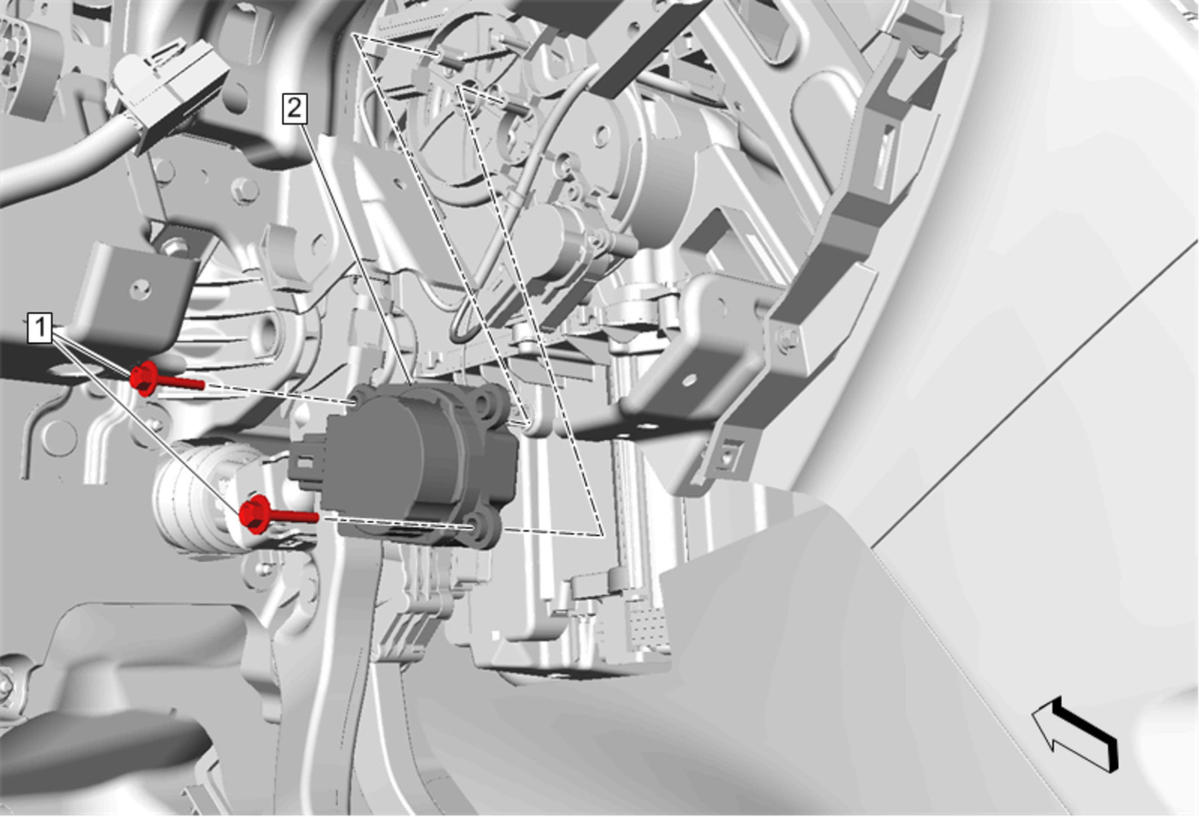

- Mode Control Cam Actuator(2) - Remove
- Disconnect the electrical connector.

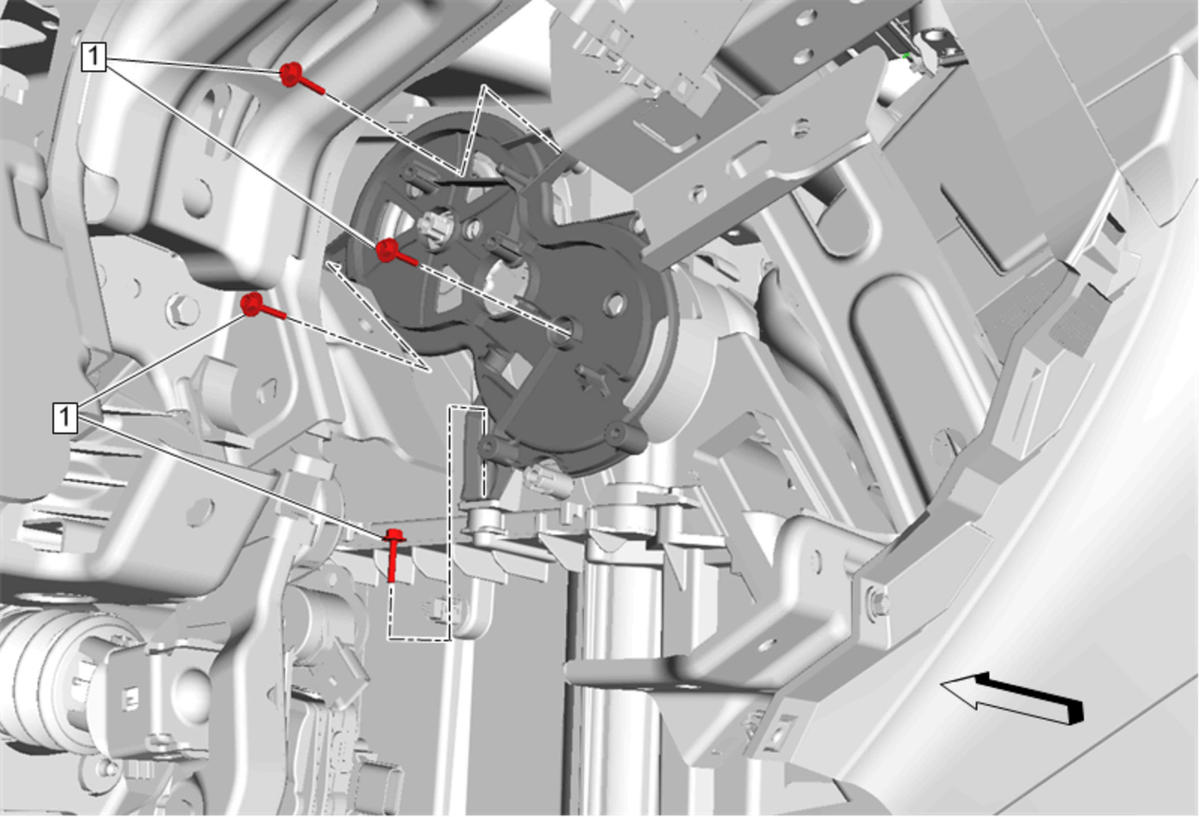

Heater and Air Conditioning Evaporator and Blower Module Bracket Bolt(1) - Remove[4x]

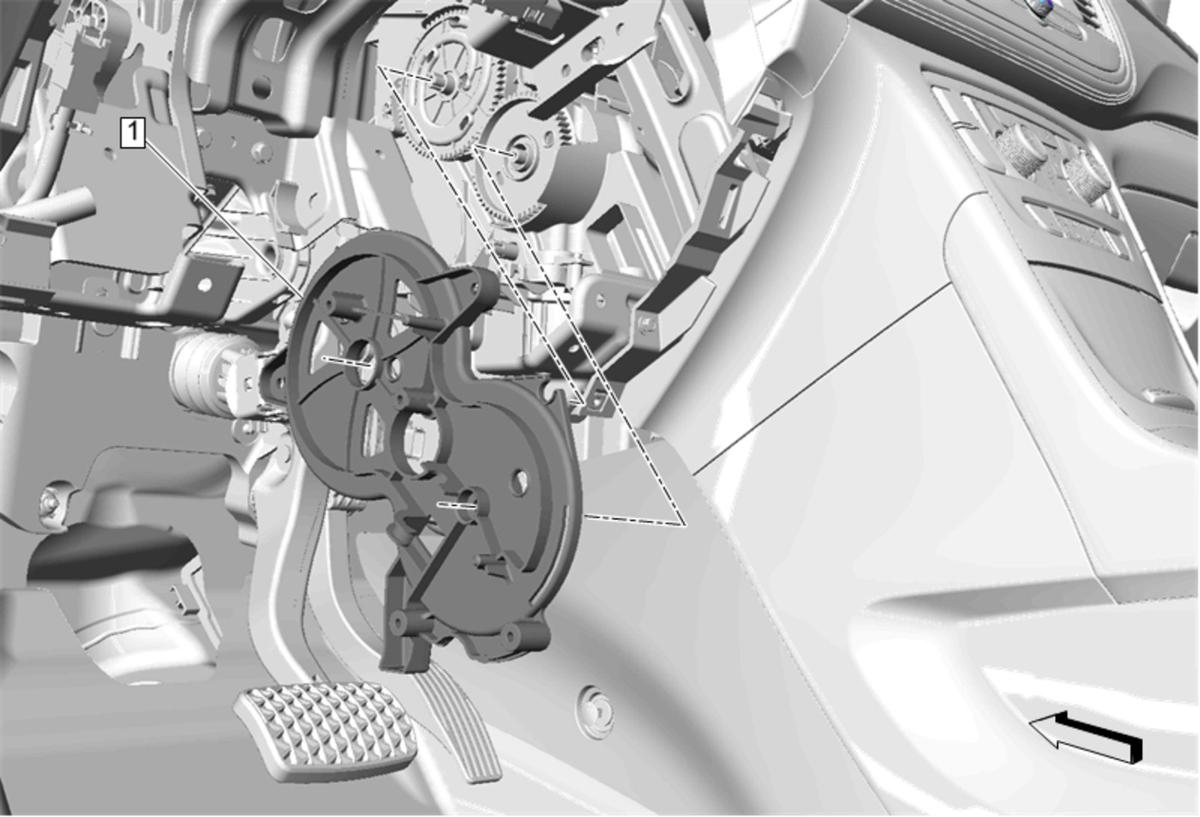

Heater and Air Conditioning Evaporator and Blower Module Bracket(1) - Remove

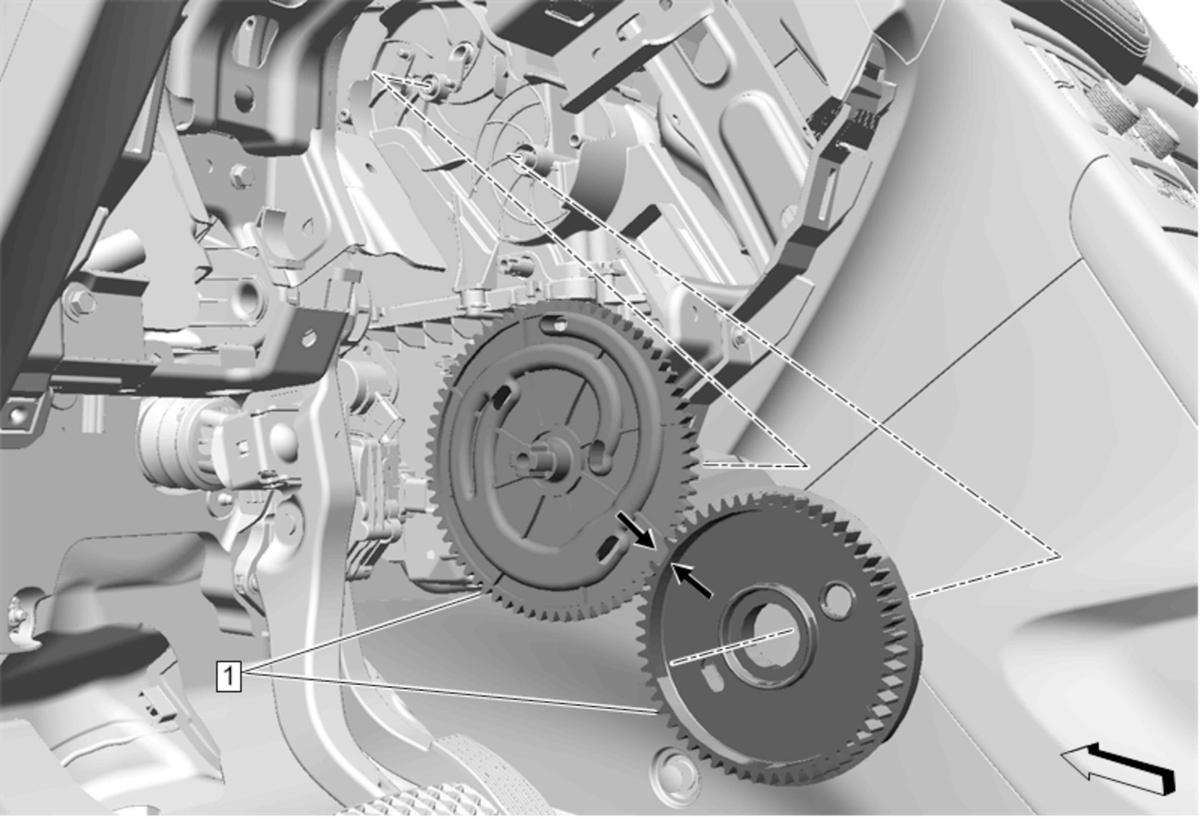

Heater and Air Conditioning Mode Control Cam(1) - Remove[2x]
