Windshield Wiper Blade Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

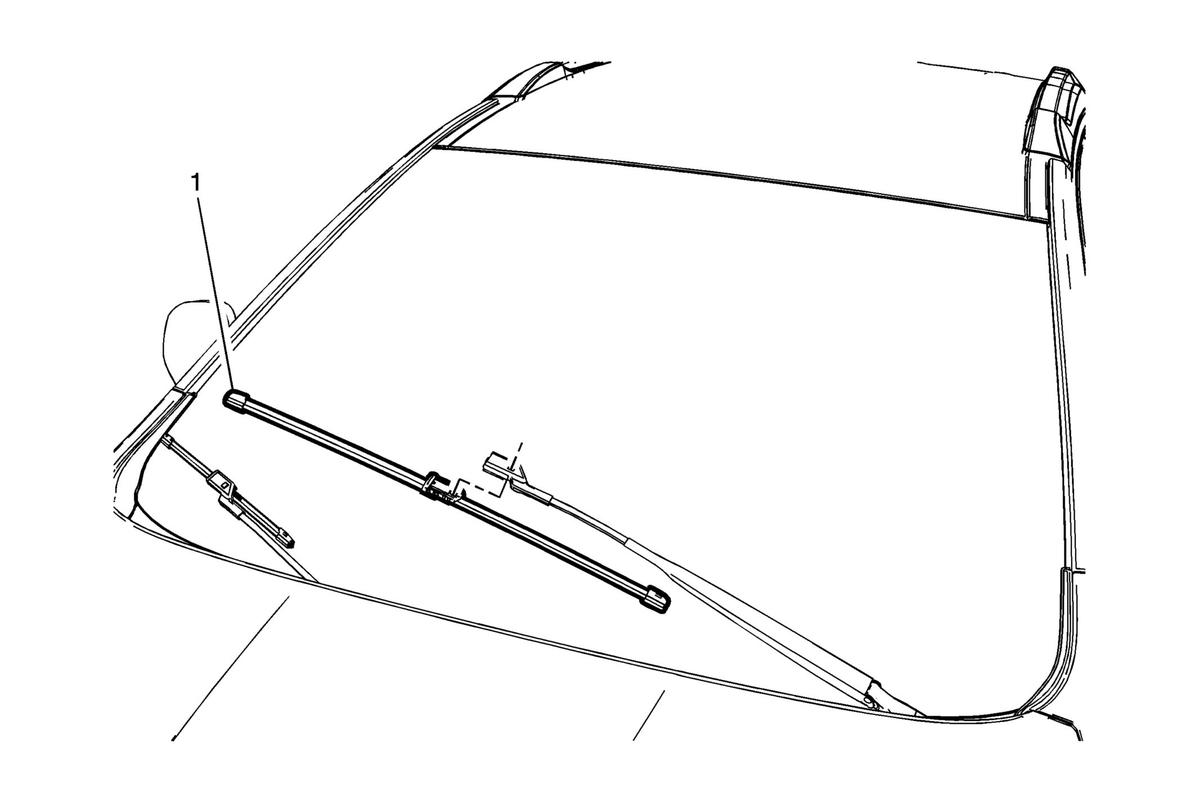

| Callout |
Component Name |
| 1 |
Windshield Wiper Blade Assembly Procedures
- Lift the windshield wiper arm off the windshield to the service up position.
- Depress the windshield wiper arm tab at the small square hole in the windshield wiper arm.
- Rotate the windshield wiper blade slightly downward and slide the windshield wiper blade assembly from the windshield wiper arm.
- Gently return the windshield wiper arm to the windshield.
- Install a new windshield wiper blade.
|
