Serial Data Gateway Module Replacement (Chevrolet)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Instrument Panel Compartment Replacement

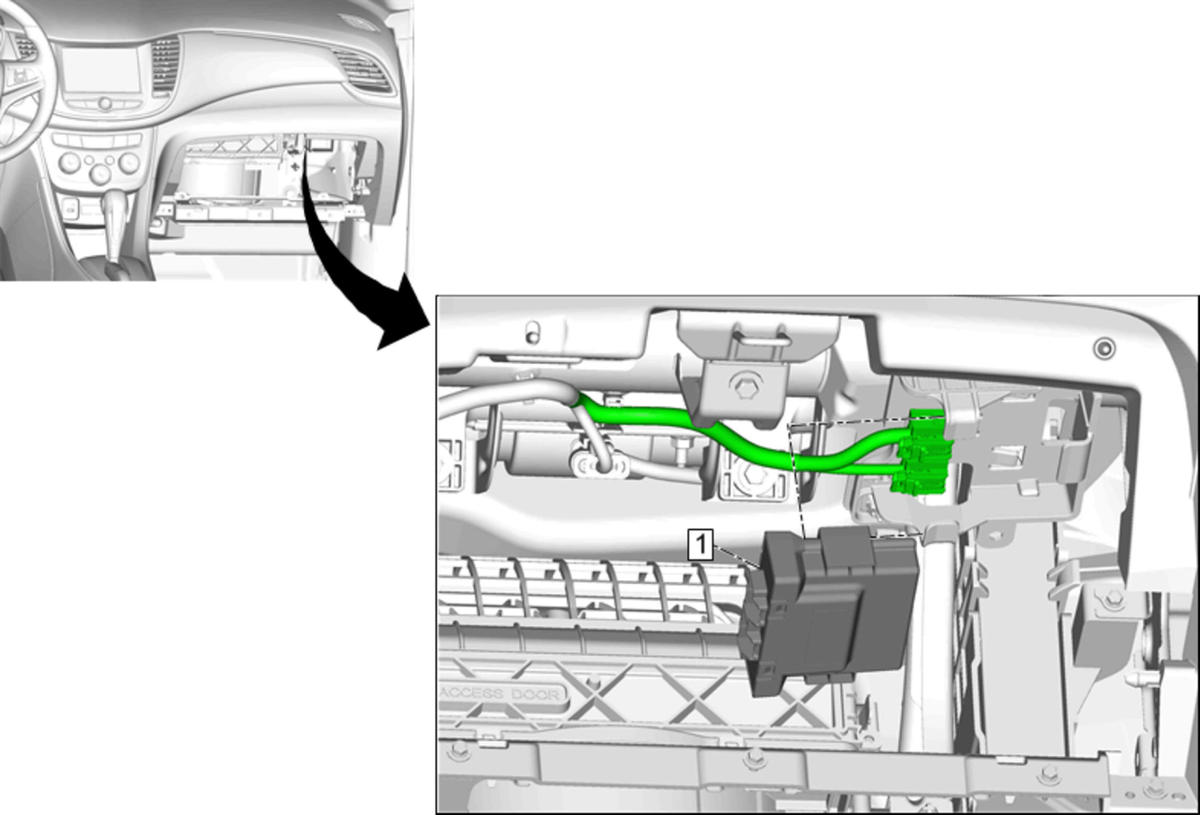

1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Instrument Panel Compartment Replacement

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
Perform the necessary programming and setup procedure:Control Module References
