Headlamp Automatic Control Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

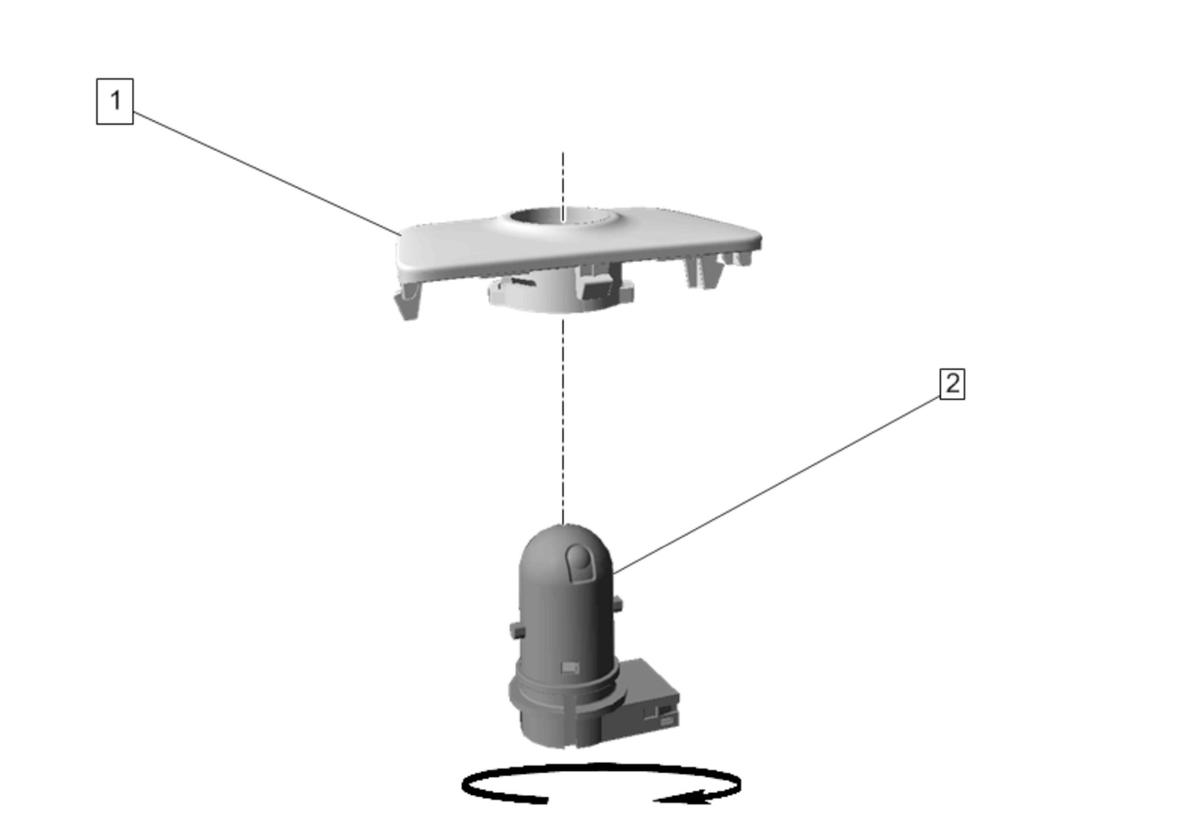

GM4531258
Callout Component Name
1 Daytime Running Lamp Ambient Light Bezel Replacement (Chevrolet)
2 Headlamp Automatic Control Ambient Light Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Turn the headlamp automatic control ambient light sensor a quarter of a turn counter clockwise to remove.
