Headlamp LED Driver Module Replacement (T4L)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

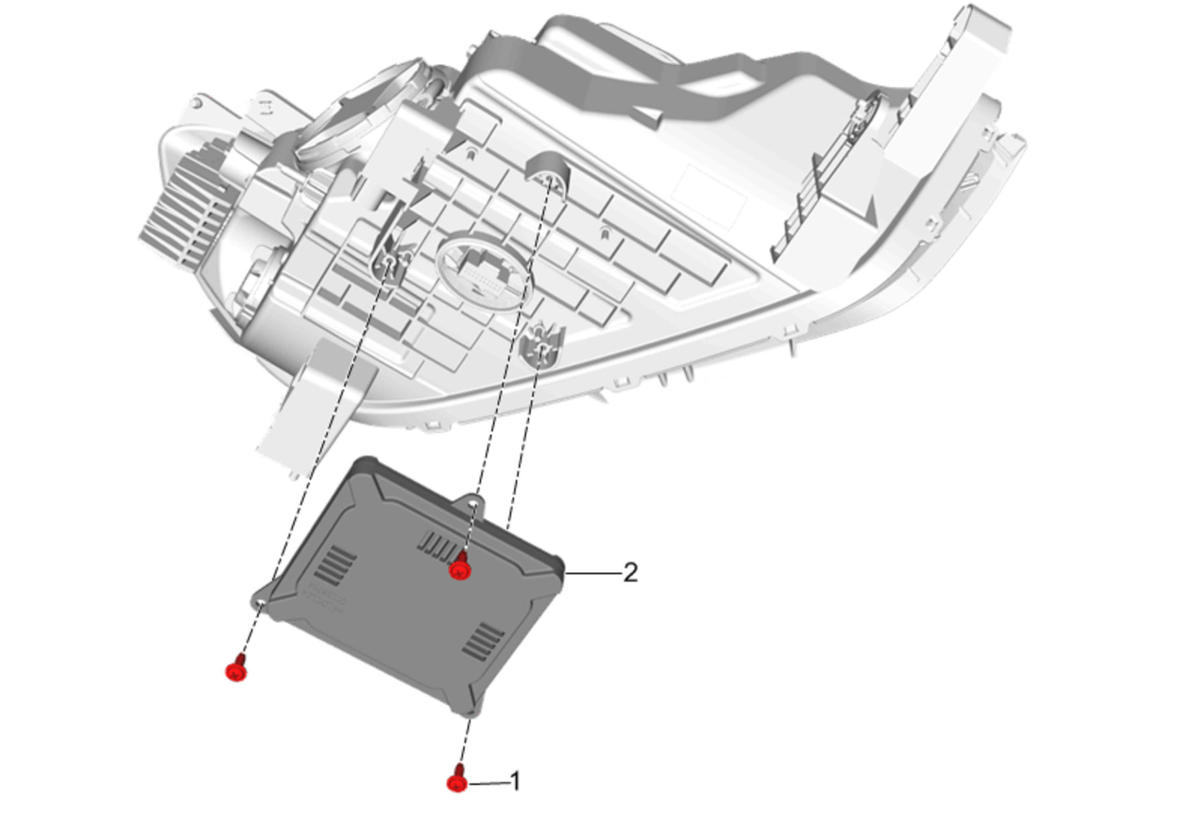

Callout	Component Name
WARNING: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. Preliminary Procedure Headlamp Replacement (T4L, Buick)
1	Headlamp LED Driver Module Screw [3x] CAUTION: Refer to Fastener Caution . Tighten 0.8 N.m (7 lb in)
2	Headlamp LED Driver Module
