Rear Combination Lamp Module Replacement (Chevrolet with UGE)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedures Rear Body Structure Stop Lamp Replacement (Chevrolet with UGE) Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side)

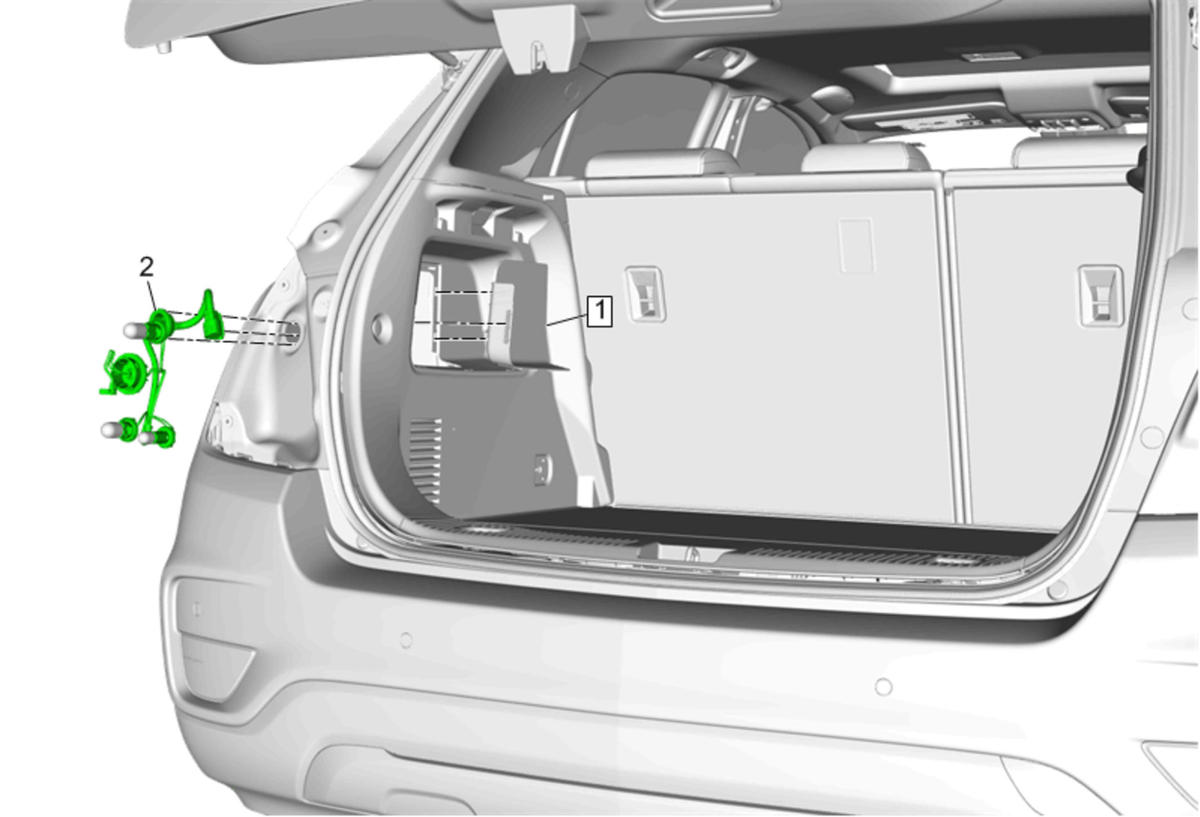

1	Quarter Trim Panel Cover Procedure Disconnect the electrical connector.
2	Rear Combination Lamp Module Procedure Pull the rear body structure stop lamp module and grommet rearward to remove. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Rear Body Structure Stop Lamp Replacement (Chevrolet with UGE)
Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side)

Quarter Trim Panel Cover
Procedure
Disconnect the electrical connector.

Rear Combination Lamp Module

Procedure

Pull the rear body structure stop lamp module and grommet rearward to remove.
Transfer components as necessary.
