Removal Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Using a scan tool, store the rear differential clutch service calibration value from the old module. K47 Rear Differential Clutch Control Module: Programming and Setup
- Raise and support the vehicle. Lifting and Jacking the Vehicle .
- Remove the propeller shaft from the rear differential and re-locate to side.

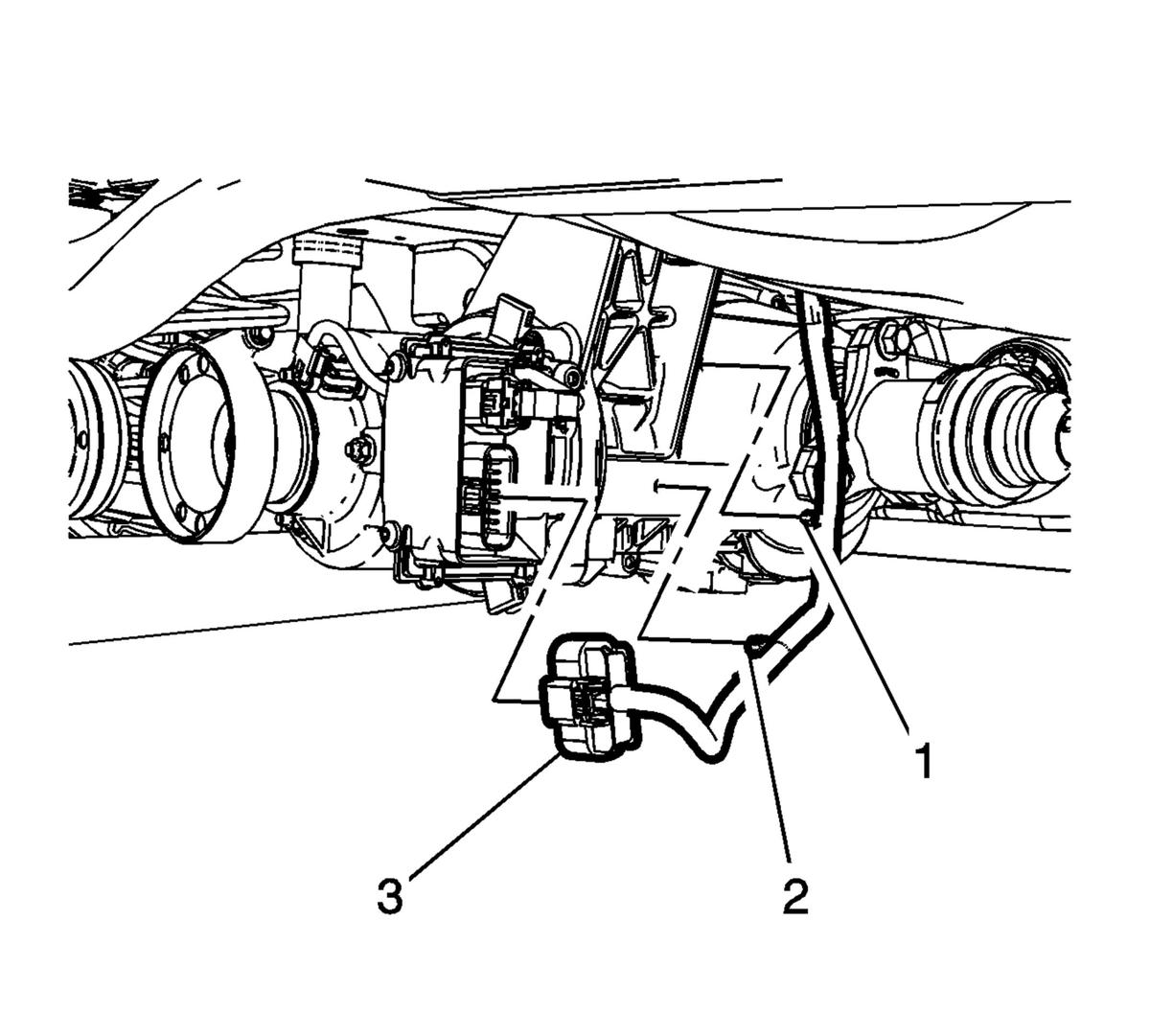

Remove the electrical connector (3).
- Remove the wiring harness from retainers (1) and (2).

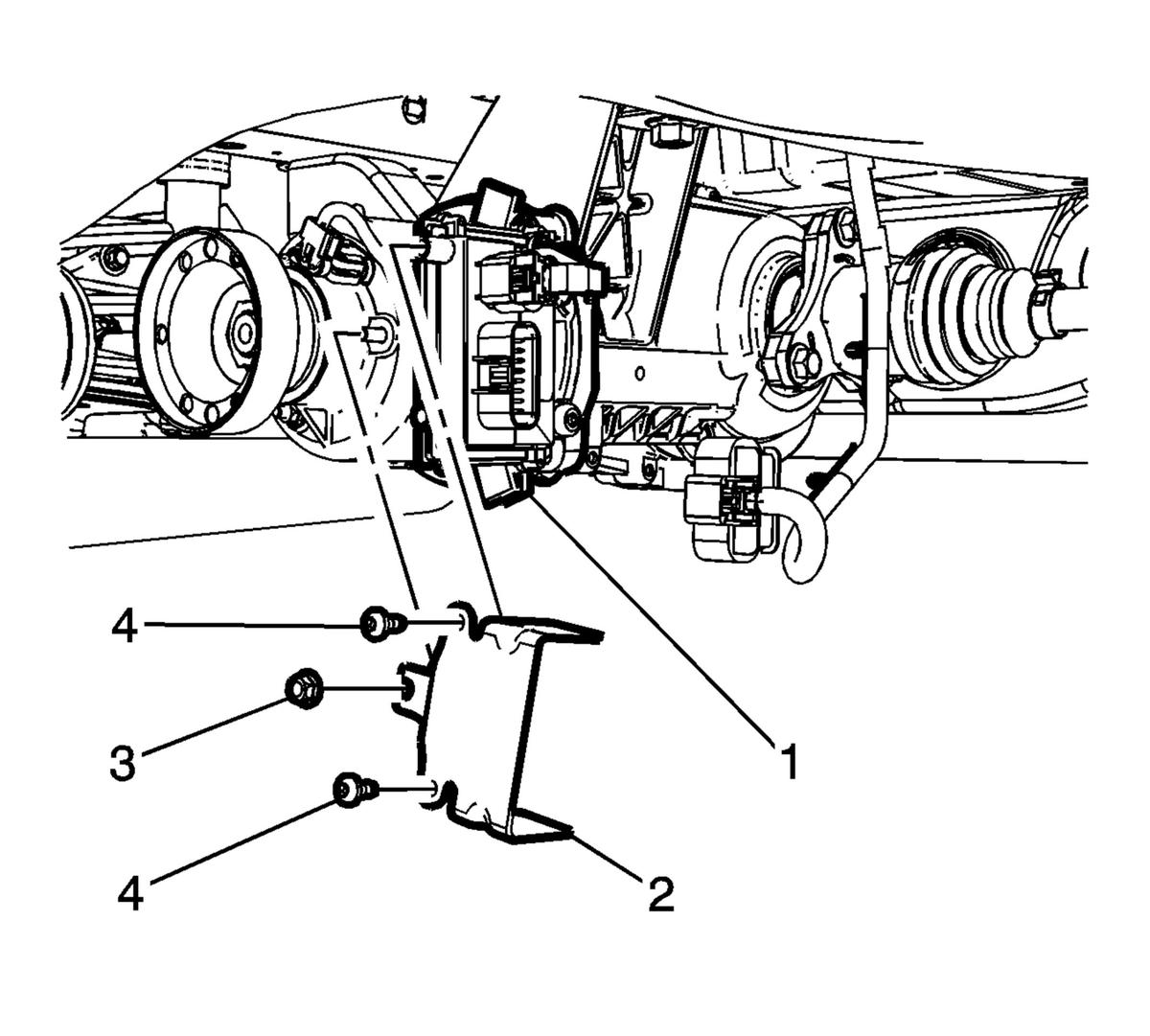

Remove the retaining screws (4), retaining nut (3), and the shield (2) from the differential clutch control module (1).

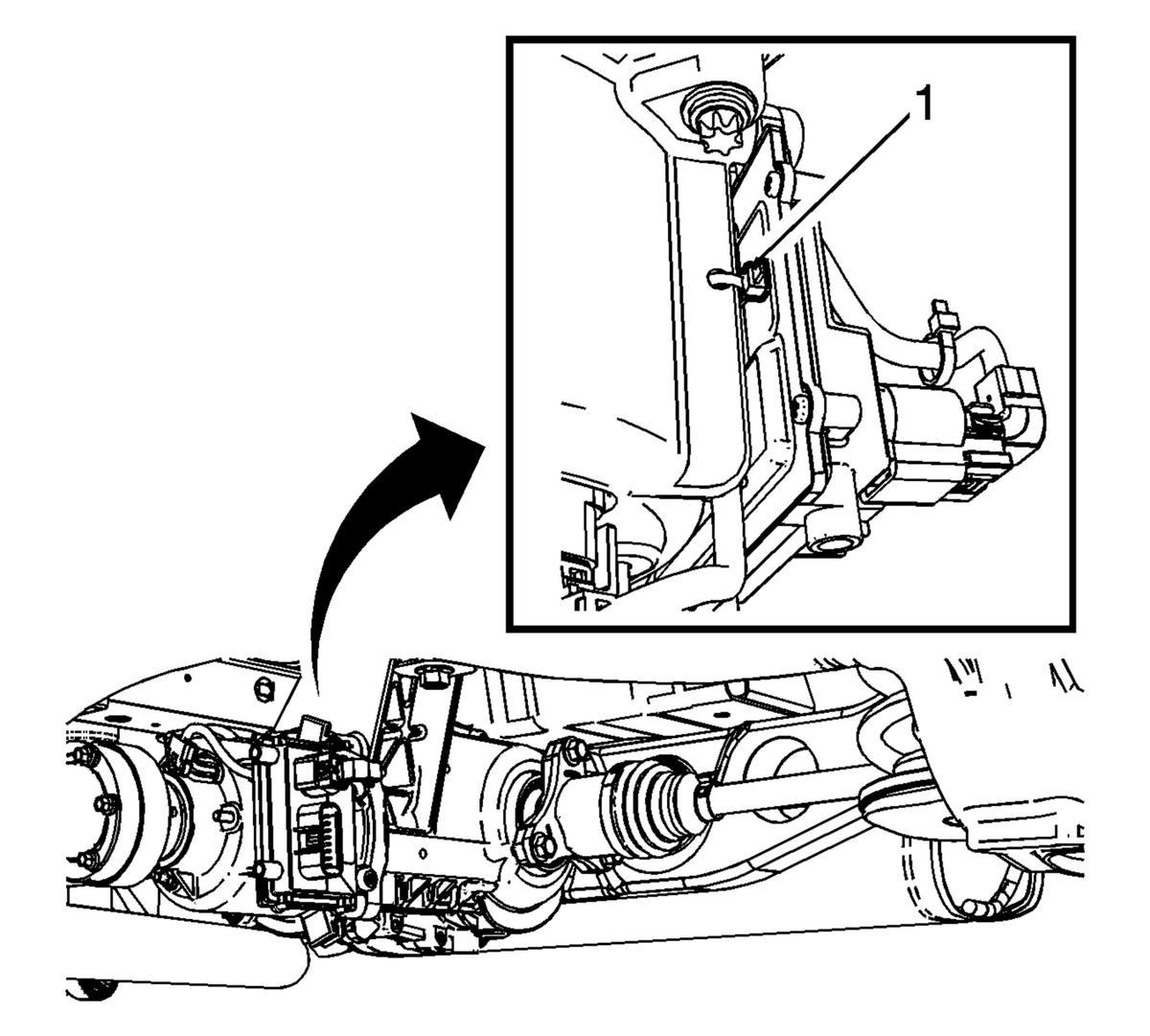

Using the appropriate tool, remove the electrical tie (1).

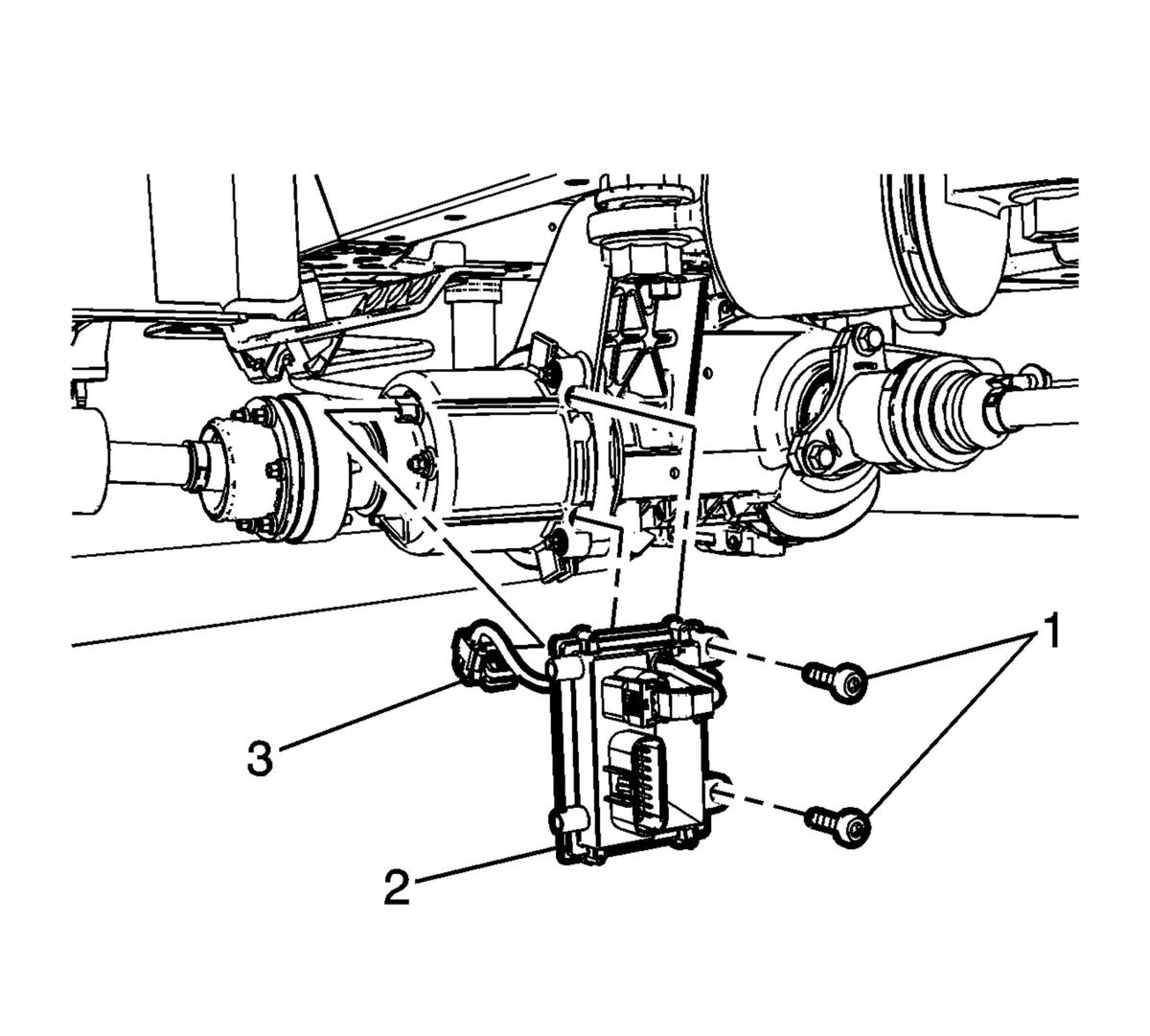

Remove the mounting screws (1) from the differential clutch control module (2).
- Remove the electrical connector (3).
- Remove the differential clutch control module (2).
NOTE:
The propeller shaft does not have to be removed from this vehicle to replace rear differential module (RDM).
