Radio Control Assembly Replacement (Buick)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

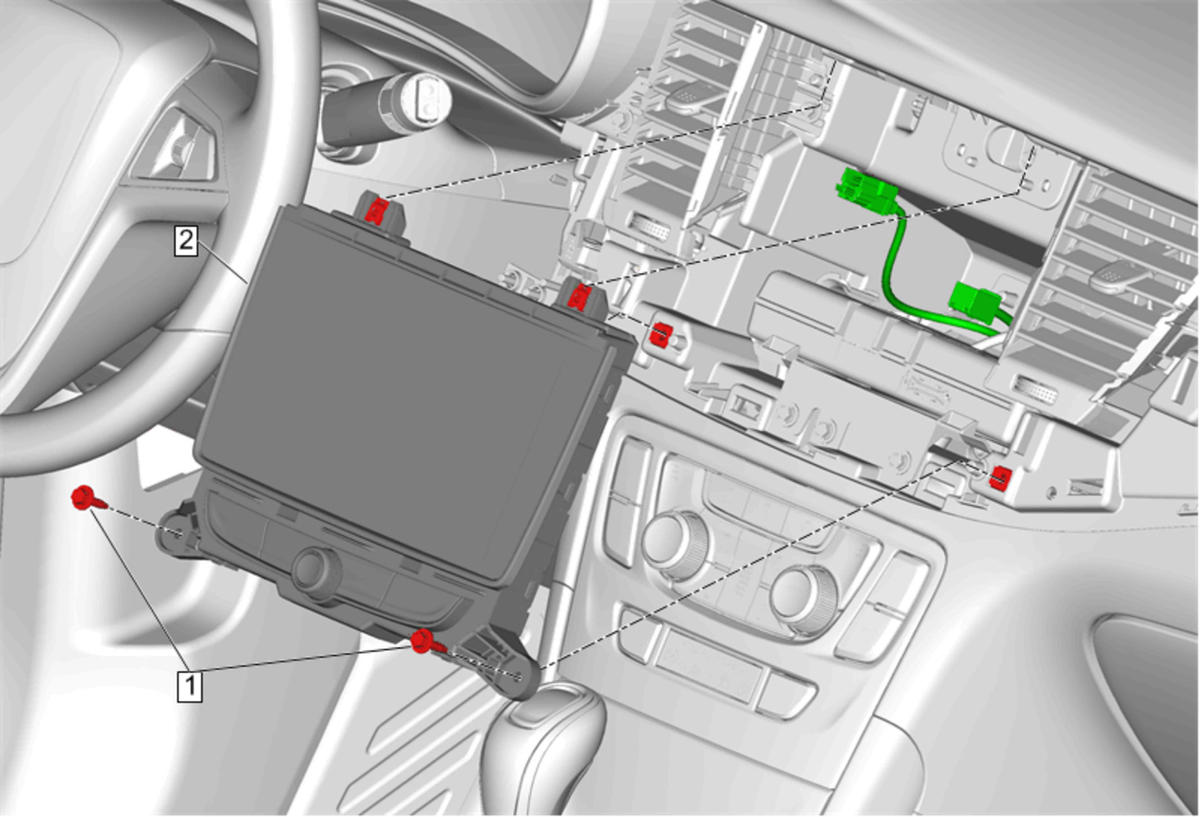

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Plate Applique Replacement - Right Side (Buick)
1	Radio Control Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Control Assembly Procedure Grasp the bottom of the radio control and pull out enough to clear the locators, then pull down to release the clips seated in the instrument panel. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure
Instrument Panel Lower Trim Plate Applique Replacement - Right Side (Buick)

Radio Control Bolt [2x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Radio Control Assembly

Procedure

Grasp the bottom of the radio control and pull out enough to clear the locators, then pull down to release the clips seated in the instrument panel.
Disconnect the electrical connectors.
