Wireless Charging System Module Replacement

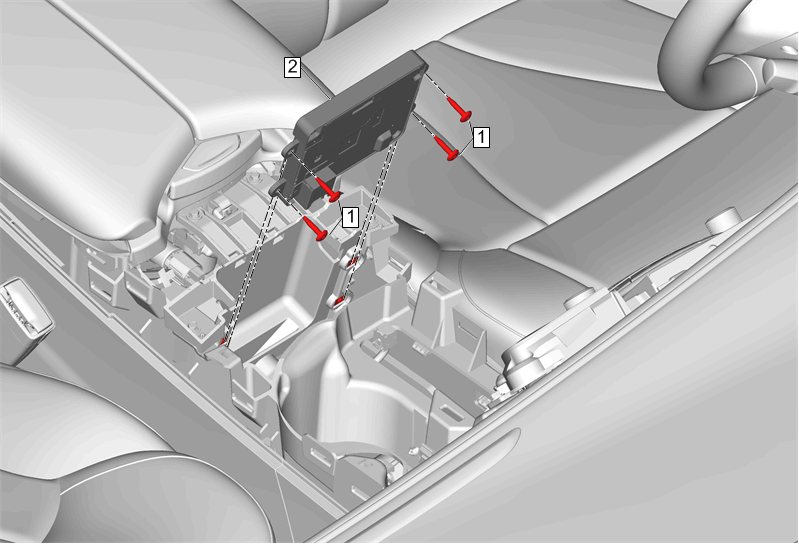

GM4885510Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Housing Replacement
1 Wireless Charging System Module Bolt [4x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Wireless Charging System Module
Procedure
Disconnect the electrical connector.
