Front View Driver Information Camera Replacement

Courtesy of GENERAL MOTORS COMPANY

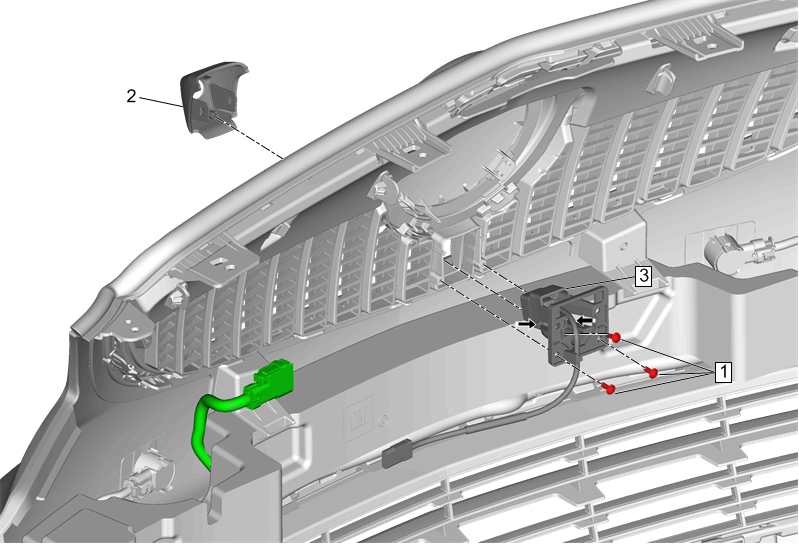

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Bumper Fascia Extension Bolt[3x] CAUTION: Fastener Caution Tighten 1 N.m (9 lb in)
2	Front View Driver Information Camera Bezel Procedure Release the retaining tabs. Use a flat bladed plastic trim tool.
3	Front View Driver Information Camera Procedure Disconnect the electrical connector. Video Processing Control Module Calibration (with UVH) , or Video Processing Control Module Calibration (with UV2)
