Battery Positive Junction Block Cable Replacement

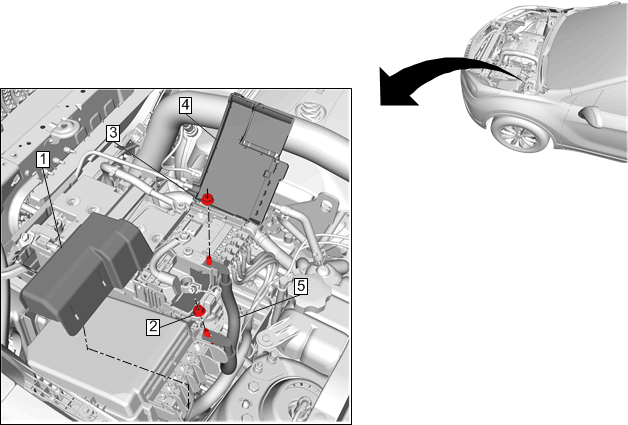

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Engine Wiring Harness Junction Block Cover |
| 2 | Engine Wiring Harness Junction Block Cable Fastener
CAUTION:
Refer to Fastener Caution . Tighten 12 N.m (106 lb in) |
| 3 | Engine Wiring Harness Junction Block Cable Fastener Tighten 12 N.m (106 lb in) |
| 4 | Battery Fuse Block Cover |
| 5 | Engine Wiring Harness Junction Block Cable |
