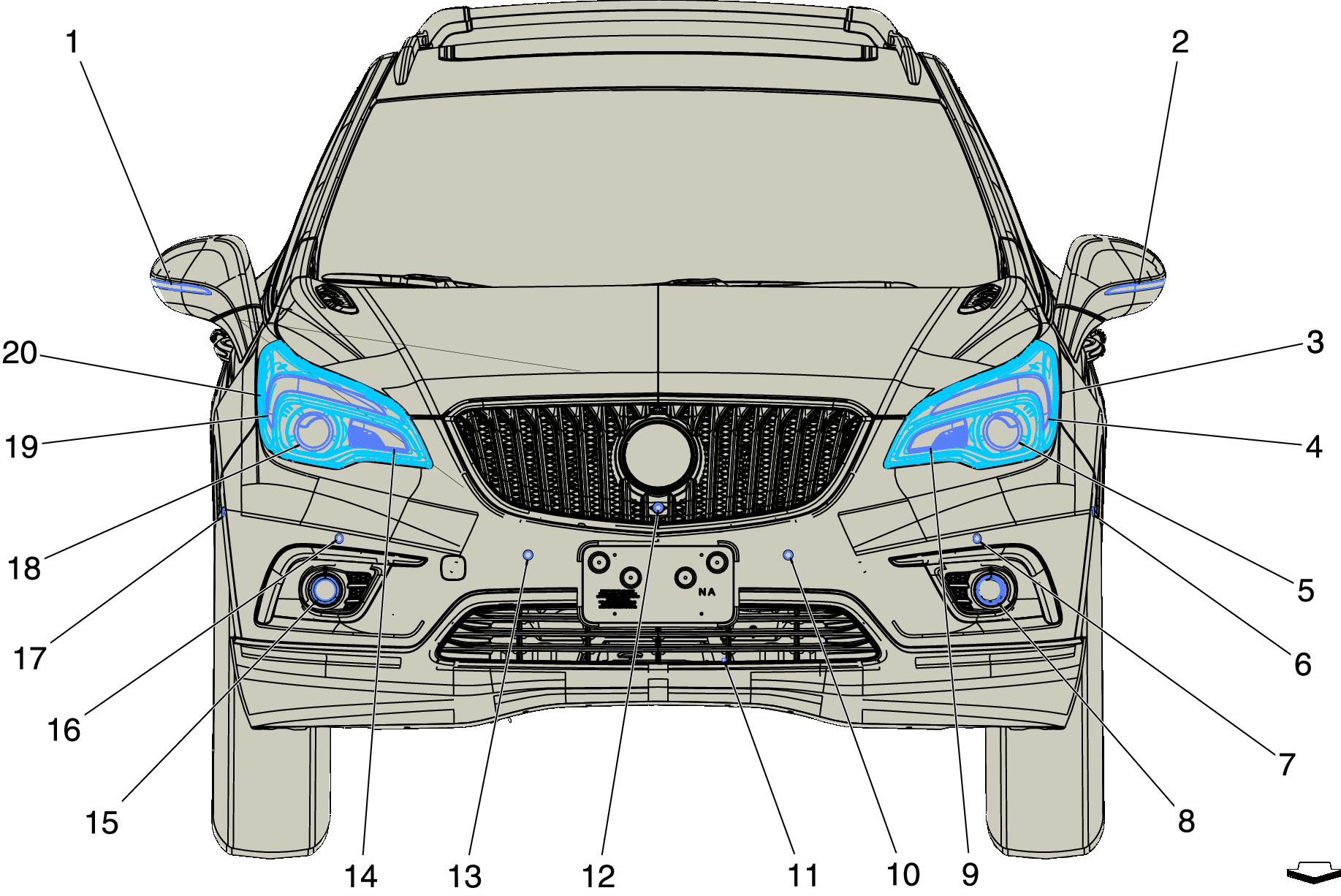

Front of Vehicle Components
Front of Vehicle Components
| Items |
|---|
| 1. E4Z Turn Signal Repeater Lamp - Right |
| 2. E4Y Turn Signal Repeater Lamp - Left |
| 3. E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left |
| 4. E4AC Park/Daytime Running Lamp - Left |
| 5. E4G Headlamp - Left Low Beam |
| 6. B306K Parking Assist Sensor - Side Left Front B306K Parking Assist Sensor - Side Left Front (UFQ) |
| 7. B306A Parking Assist Sensor - Front Left Outer B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ) |
| 8. E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front |
| 9. E4LF Turn Signal Lamp - Left Front |
| 10. B306B Parking Assist Sensor - Front Left Middle B306B Parking Assist Sensor - Front Left Middle (UD5/UFQ) |
| 11. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 12. B233B Radar Sensor Module - Long Range (UGN) B233B Radar Sensor Module - Long Range (KSG) |
| 13. B306C Parking Assist Sensor - Front Right Middle B306C Parking Assist Sensor - Front Right Middle (UD7/UFQ) |
| 14. E4RF Turn Signal Lamp - Right Front |
| 15. E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front |
| 16. B306D Parking Assist Sensor - Front Right Outer B306D Parking Assist Sensor - Front Right Outer (UD5/UFQ) |
| 17. 306L Parking Assist Sensor - Side Right Front B306L Parking Assist Sensor - Side Right Front (UFQ) |
| 18. E4H Headlamp - Right Low Beam |
| 19. 4AD Park/Daytime Running Lamp - Right |
| 20. E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right |
