Windshield Washer Solvent Container Level Sensor Replacement
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

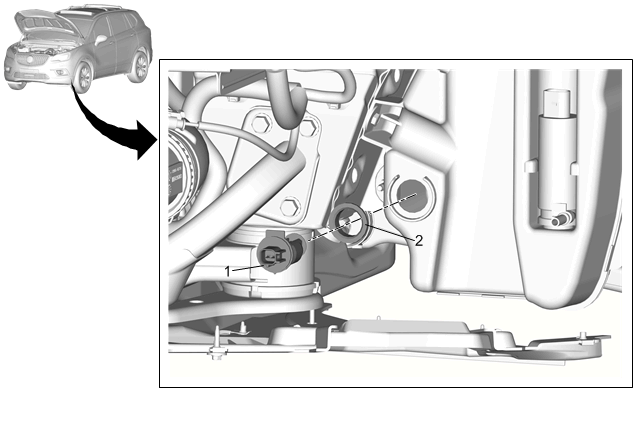

| Callout |
Component Name |
Preliminary Procedure
Front Bumper Fascia Replacement |
| 1 |
Windshield Washer Solvent Container Level Sensor Procedure
- Disconnect the electrical connector.
- Using two appropriate tools placed under each side of the windshield washer solvent container level sensor, disengage the level sensor from the windshield washer solvent container.
|
| 2 |
Windshield Washer Solvent Container Level Sensor Grommet Procedure
- Disconnect the electrical connector.
- Compress and remove the grommet from the front of the windshield washer solvent container.
NOTE:
Install a new headlamp washer pump grommet upon replacement of the headlamp washer pump.
- Upon installation of a new grommet, lubricate the exterior of the grommet with windshield washer solvent to assist with the installation of the grommet into the windshield washer container.
- Ensure the grommet is seated to the front side of the windshield washer solvent container.
|
