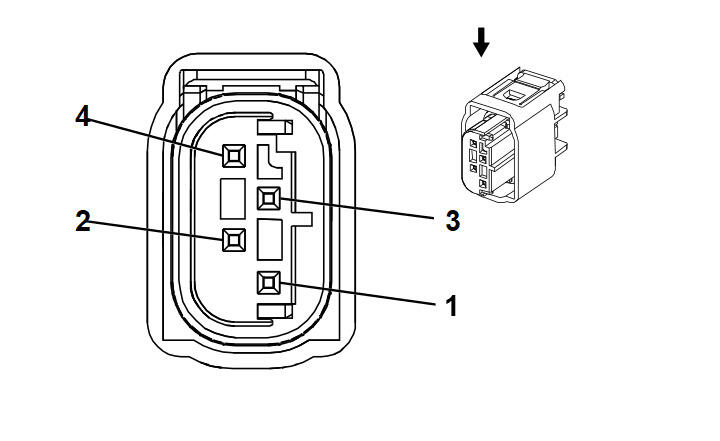

B70 Liftgate Close Switch (TC2)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 90484986
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64 Micro-Quadlock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
2550 |
Ground |
I |
- |
| 2 |
0.35 |
GY/WH |
3034 |
Lift Gate Shut Face Switch LED Control |
I |
- |
| 3 |
0.35 |
GN |
3033 |
Lift Gate Shut Face Switch Signal |
I |
- |
| 4 |
0.35 |
BK/VT |
5801 |
Lift Gate Object Sensor Low Reference |
I |
- |
